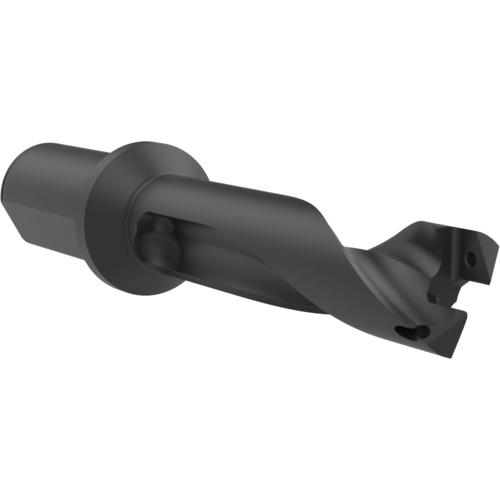

32MM 3X GEN3SYS HLD 1-1/2″ FLG GEN3SYS HOLDER
Drill; 1.2598″ to 1.378″ Dia. × 1-1/2″ Shank Dia. × 8-57/64″ OAL × 4-9/64″ LU × 2-11/16″ Shank Length ; 3D ; Flange Shank ; Series 32
| Usable Length (LU) | 4-9/64″ | Cutting Diameter Maximum (DCX) | 35 mm |
| Length Group | 3D | Functional Length (LF) | 6-29/64″ |
| Shank Type | Weldon | Overall Length (OAL) | 8-57/64″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 32 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.87
