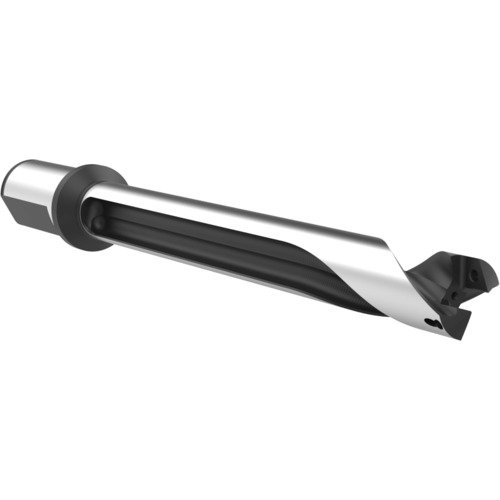

29MM 7X GEN3SYS HLD 32 FLG GEN3SYS XT ST HOLDER
Drill; 29 mm to 32 mm Dia. × 32 mm Shank Dia. × 324.1 mm OAL × 223.9 mm LU × 60 mm Shank Length ; 7D ; Flange Shank ; Series 29
| Usable Length (LU) | 223.9 mm | Cutting Diameter Maximum (DCX) | 31.99 mm |
| Length Group | 7D | Functional Length (LF) | 264.1 mm |
| Shank Type | Weldon | Overall Length (OAL) | 324.1 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 29 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.910
