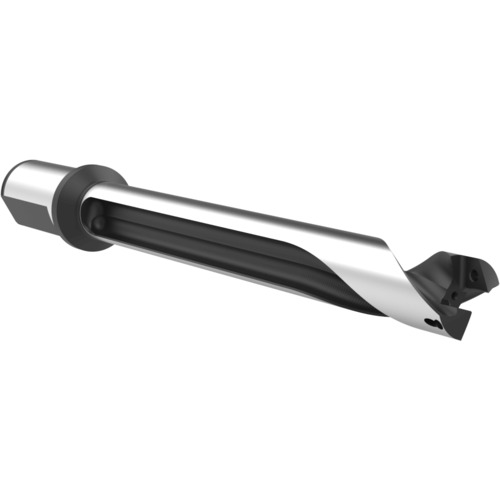

26MM 7X GEN3SYS HLD 32 FLG GEN3SYS XT ST HOLDER
Drill; 26 mm to 29 mm Dia. × 32 mm Shank Dia. × 304 mm OAL × 202.9 mm LU × 60 mm Shank Length ; 7D ; Flange Shank ; Series 26
| Usable Length (LU) | 202.9 mm | Cutting Diameter Maximum (DCX) | 28.99 mm |
| Length Group | 7D | Functional Length (LF) | 244 mm |
| Shank Type | Weldon | Overall Length (OAL) | 304 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 26 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.910
