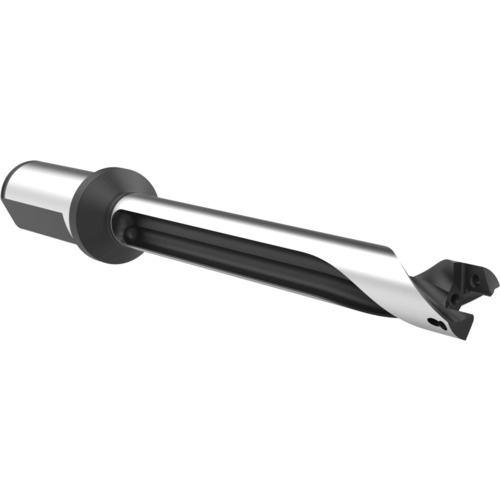

20MM 7X GEN3SYS HLD 25 FLG GEN3SYS XT ST HOLDER
Drill; 20 mm to 24 mm Dia. × 25 mm Shank Dia. × 244.1 mm OAL × 153.9 mm LU × 56 mm Shank Length ; 7D ; Flange Shank ; Series 20
| Usable Length (LU) | 153.9 mm | Cutting Diameter Maximum (DCX) | 21.99 mm |
| Length Group | 7D | Functional Length (LF) | 188.1 mm |
| Shank Type | Weldon | Overall Length (OAL) | 244.1 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 20 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.020
