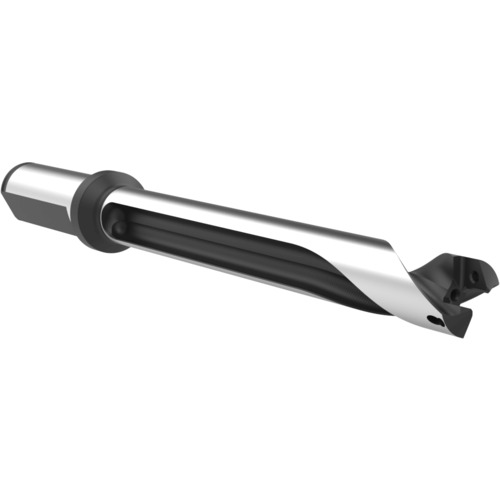

17MM 7X GEN3SYS HLD 20 FLG GEN3SYS XT ST HOLDER
Drill; 17 mm to 18 mm Dia. × 20 mm Shank Dia. × 206 mm OAL × 125.9 mm LU × 50 mm Shank Length ; 7D ; Flange Shank ; Series 17
| Usable Length (LU) | 125.9 mm | Cutting Diameter Maximum (DCX) | 17.99 mm |
| Length Group | 7D | Functional Length (LF) | 156 mm |
| Shank Type | Weldon | Overall Length (OAL) | 206 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 17 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.530
