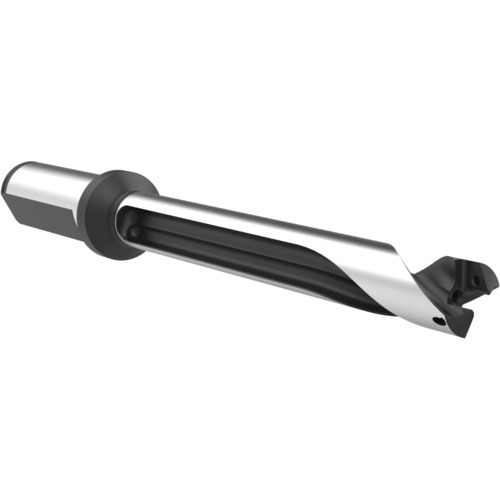

15MM 7X GEN3SYS HLD 20 FLG GEN3SYS XT ST HOLDER
Drill; 15 mm to 16 mm Dia. × 20 mm Shank Dia. × 189 mm OAL × 111.9 mm LU × 50 mm Shank Length ; 7D ; Flange Shank ; Series 15
| Usable Length (LU) | 111.9 mm | Cutting Diameter Maximum (DCX) | 15.99 mm |
| Length Group | 7D | Functional Length (LF) | 139 mm |
| Shank Type | Weldon | Overall Length (OAL) | 189 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 15 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.460
