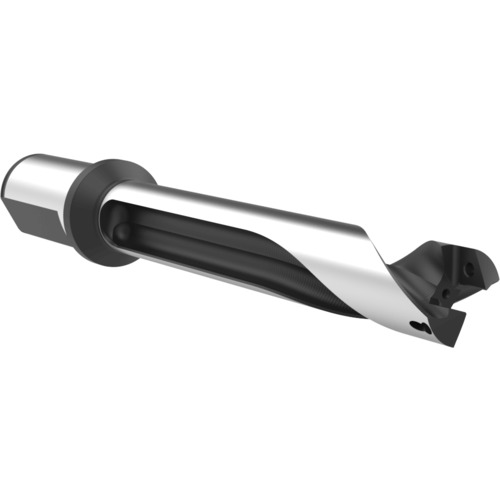

32MM 5X GEN3SYS HLD 32 FLG GEN3SYS XT ST HOLDER
Drill; 32 mm to 35 mm Dia. × 32 mm Shank Dia. × 287.7 mm OAL × 175 mm LU × 60 mm Shank Length ; 5D ; Flange Shank ; Series 32
| Usable Length (LU) | 175 mm | Cutting Diameter Maximum (DCX) | 35 mm |
| Length Group | 5D | Functional Length (LF) | 227.7 mm |
| Shank Type | Weldon | Overall Length (OAL) | 287.7 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 32 mm | Flute Type | Straight |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
12.000
