SD101-20.00/21.99-40-1000

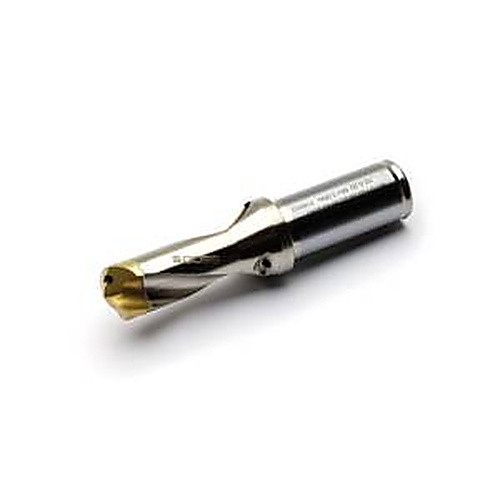

Drill; 19.5 mm Dia. × 20 mm Min. Dia. × 21.99 mm Max. Dia. × 25.4 mm Shank Dia. × 129.5 mm OAL × 40 mm LU × 56 mm Shank Length ; 1.5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 19.5 mm | Protruding Length (LPR) | 53.5 mm |
| Usable Length (LU) | 40 mm | Functional Length (LF) | 73.5 mm |
| Length Group | 1.5D | Overall Length (OAL) | 129.5 mm |
| Shank Type | Weldon | Shank Length (LS) | 56 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 20 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 21.99 mm | Decimal Equivalent | 0.7677″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.719
