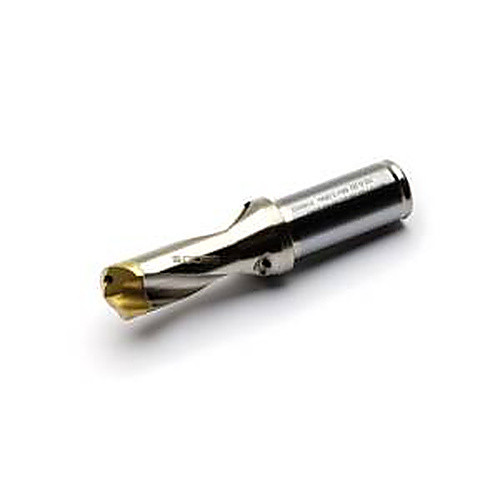

O CROWNLOC DRILL BODIES - MODEL # SD101-19.00/19.99-30-0750R7; 4.677 OVERALL LENGTH; WELDON SHANK; 0.75 SHANK DIAMETER
Drill; 18.5 mm Dia. × 19 mm Min. Dia. × 19.99 mm Max. Dia. × 19.05 mm Shank Dia. × 112.5 mm OAL × 30 mm LU × 50 mm Shank Length ; 1.5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 18.5 mm | Protruding Length (LPR) | 46.5 mm |
| Usable Length (LU) | 30 mm | Functional Length (LF) | 62.5 mm |
| Length Group | 1.5D | Overall Length (OAL) | 112.5 mm |
| Shank Type | Weldon | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 19.05 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 19 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 19.99 mm | Decimal Equivalent | 0.7283″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.538
