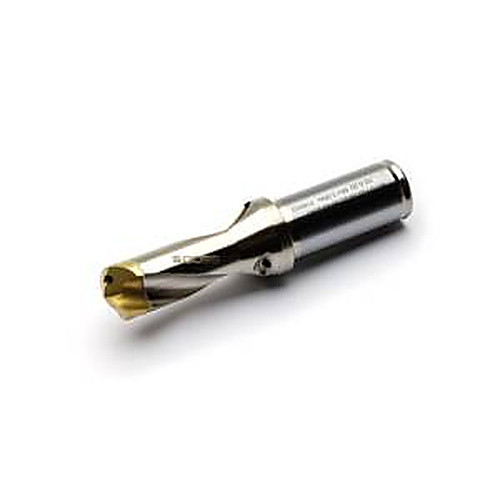

O CROWNLOC DRILL BODIES - MODEL # SD101-13.00/13.99-20-0625R7; 3.811 OVERALL LENGTH; WELDON SHANK; 0.625 SHANK DIAMETER
Drill; 12.5 mm Dia. × 13 mm Min. Dia. × 13.99 mm Max. Dia. × 15.88 mm Shank Dia. × 96.8 mm OAL × 20 mm LU × 48 mm Shank Length ; 1.5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12.5 mm | Protruding Length (LPR) | 32.8 mm |
| Usable Length (LU) | 20 mm | Functional Length (LF) | 48.8 mm |
| Length Group | 1.5D | Overall Length (OAL) | 96.8 mm |
| Shank Type | Weldon | Shank Length (LS) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 13 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 13.99 mm | Decimal Equivalent | 0.4921″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.384
