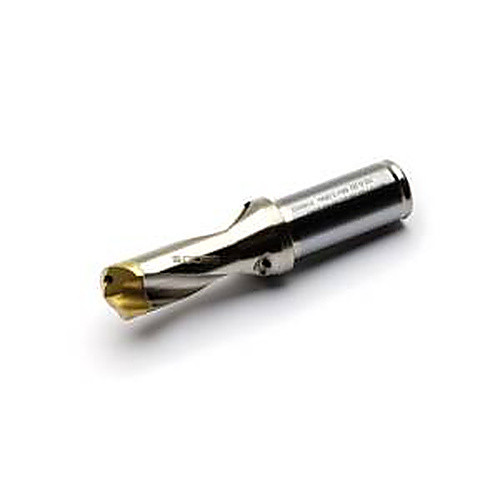

O CROWNLOC DRILL BODIES - MODEL # SD101-12.00/12.49-20-0625R7; 3.78 OVERALL LENGTH; WELDON SHANK; 0.625 SHANK DIAMETER
Drill; 11.5 mm Dia. × 12 mm Min. Dia. × 12.49 mm Max. Dia. × 15.88 mm Shank Dia. × 96 mm OAL × 20 mm LU × 48 mm Shank Length ; 1.5D ; Weldon Shank
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 11.5 mm | Protruding Length (LPR) | 32 mm |
| Usable Length (LU) | 20 mm | Functional Length (LF) | 48 mm |
| Length Group | 1.5D | Overall Length (OAL) | 96 mm |
| Shank Type | Weldon | Shank Length (LS) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 15.88 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 12 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 12.49 mm | Decimal Equivalent | 0.4528″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.377
