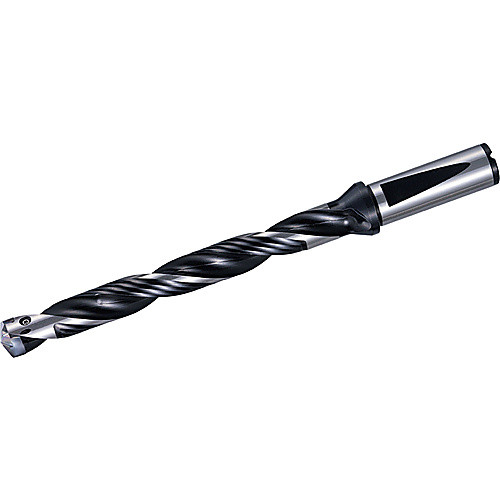

SF0625DRA120M8 8XD REPL
| Cutting Diameter (DC) | 0.4724″ to 0.4917″ | Overall Length (OAL) | 6.535″ |
| Usable Length (LU) | 3.937″ | Shank Length (LS) | 1.8902″ |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ | Style | SF DRA |
| Insert Seat Size Code (SSC) | 120 | Master Insert Identification (MIID) | DA1200M- ~ DA1240M- |
| Cutting Diameter Minimum (DCN) | 0.4724″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.4917″ | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.1000
