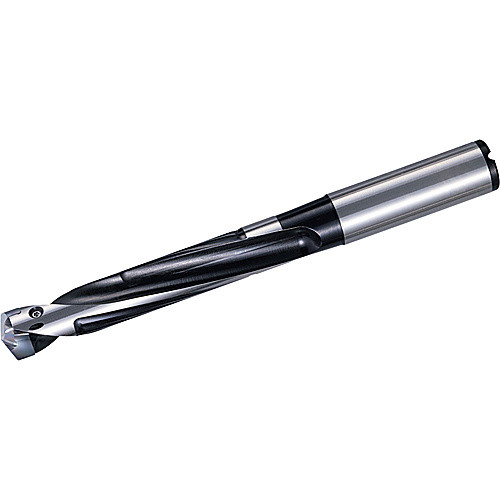

SS14DRA135M5 5XD REPL

| Cutting Diameter (DC) | 13.5 mm to 13.99 mm | Overall Length (OAL) | 135 mm |
| Usable Length (LU) | 70 mm | Shank Length (LS) | 45 mm |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Style | SS DRA |
| Insert Seat Size Code (SSC) | 135 | Master Insert Identification (MIID) | DA1350M- ~ DA1390M- |
| Cutting Diameter Minimum (DCN) | 13.5 mm | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 13.99 mm | Body Material | Steel |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.1000
