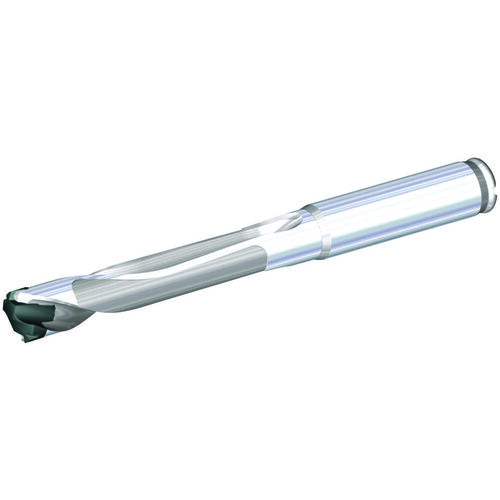

TDM1 DRILL BODY 5XD D=0.7874
Drill; 0.787″ to 0.826″ Dia. × 13/16″ Shank Dia. × 7-1/2″ OAL × 4.13″ LU × 2″ Shank Length ; 5D ; Cylindrical Shank ; Series Top Drill M1
Additional Tariff Surcharge of 8.5 %
| Usable Length (LU) | 4.13″ | Protruding Length (LPR) | 5.38″ |
| Length Group | 5D | Overall Length (OAL) | 7-1/2″ |
| Shank Type | Round | Shank Length (LS) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 13/16″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 0.787″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.826″ | Body Material | Steel |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.8995
