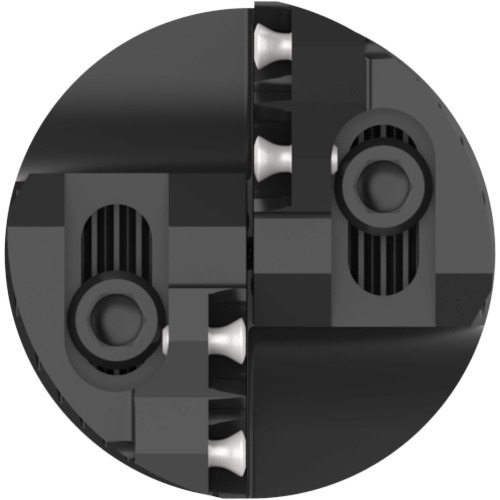

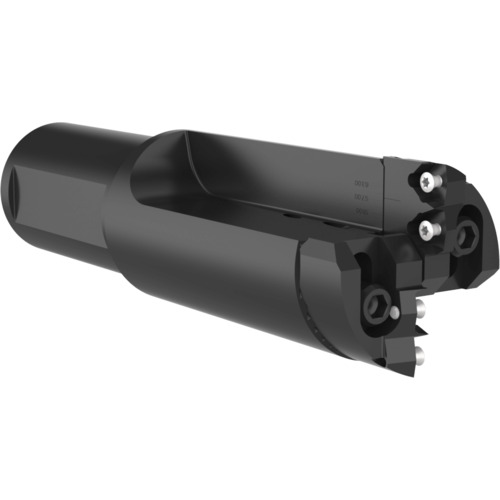

OP1-1S-40M - 50.80 to 63.5 mm Dia - 4 mm Straight Shank Short Opening Drill Holder
| Cutting Diameter (DC) | 50.8 mm to 63.5 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 83.5 mm | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Diameter Minimum (DCN) | 50.8 mm |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 63.5 mm |
| Protruding Length (LPR) | 102.9 mm | Measurement Type | Metric |
| Shank Length (LS) | 7 mm | Length Group | Short |
| Functional Length (LF) | 83.5 mm | Master Insert Identification (MIID) | OP-05T308- |
| Overall Length (OAL) | 172.9 mm | Decimal Equivalent | 2″ - 2.5″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
3.391
