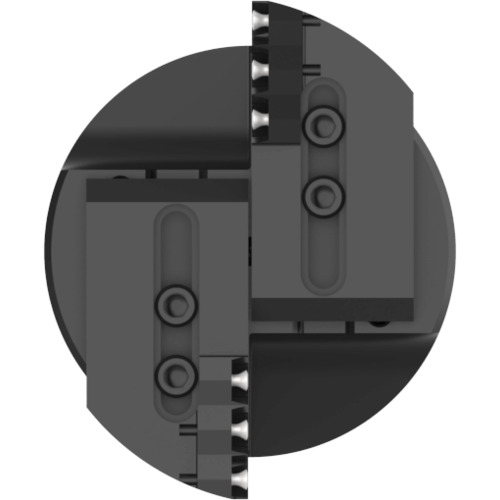

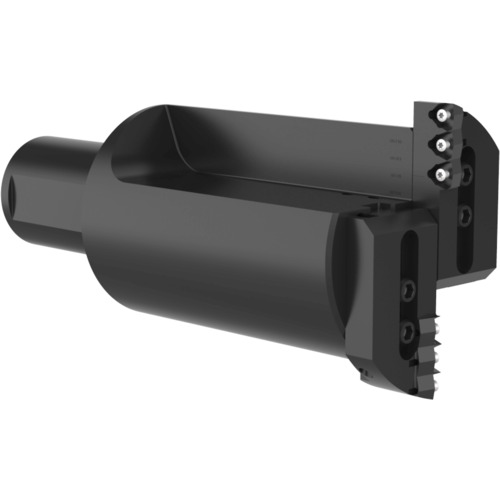

OP4-1S-50M - 104.65 to 142.75 mm Dia - 4 mm Straight Shank Short Opening Drill Holder
| Cutting Diameter (DC) | 104.65 mm to 142.75 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 127.4 mm | Cutting Item Count (CICT) | 6 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Diameter Minimum (DCN) | 104.7 mm |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 142.8 mm |
| Protruding Length (LPR) | 152.5 mm | Measurement Type | Metric |
| Shank Length (LS) | 7 mm | Length Group | Short |
| Functional Length (LF) | 127.4 mm | Master Insert Identification (MIID) | OP-05T308- |
| Overall Length (OAL) | 232.5 mm | Decimal Equivalent | 4.1201″ - 5.6201″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
14.326
