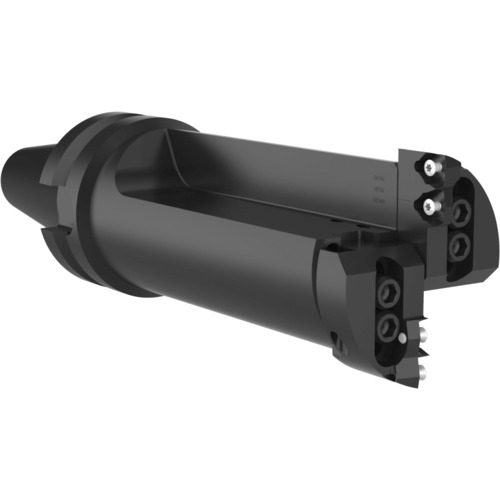

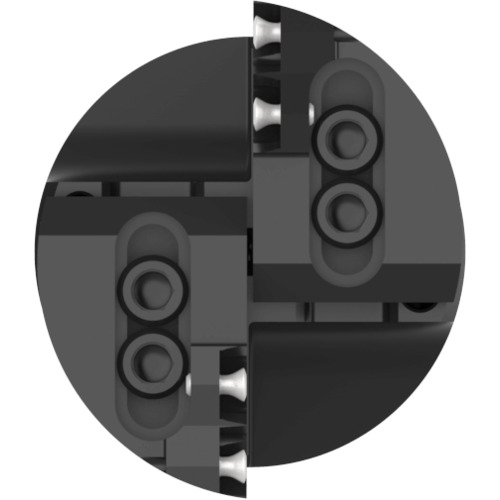

OP2-1S-BT40 - 63.50 to 76.2 mm Dia - BT40 Shank Short Opening Drill Holder
| Cutting Diameter (DC) | 63.5 mm to 76.2 mm | Cutting Item Count (CICT) | 4 |
| Usable Length (LU) | 118.5 mm | Cutting Diameter Minimum (DCN) | 63.5 mm |
| Shank Size (SS) | BT40 | Cutting Diameter Maximum (DCX) | 76.2 mm |
| Shank Type | BT Taper | Measurement Type | Metric |
| Protruding Length (LPR) | 174.7 mm | Length Group | Short |
| Functional Length (LF) | 118.5 mm | Master Insert Identification (MIID) | OP-05T308- |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 2.5″ - 3″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
6.405
