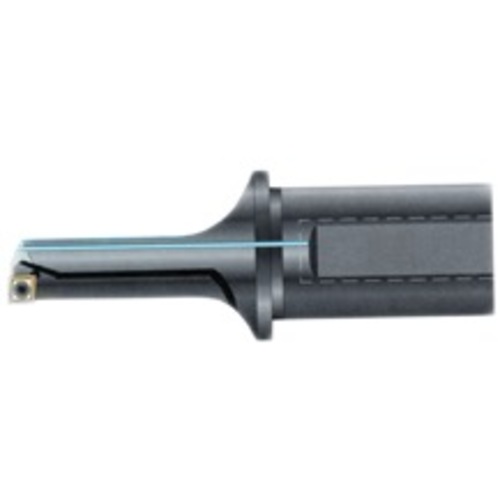

5/8″ Dia - 1″ SH - Mini Indexable Drill - Coolant Thru
Indexable Insert Drill; 5/8″ Dia. × 2″ LU × 1″ Shank Dia.
| Cutting Diameter (DC) | 5/8″ | Shank Length (LS) | 1-3/4″ |
| Usable Length (LU) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | CCMT 3-... |
| Shank Type | Round | Decimal Equivalent | 0.625″ |
Product Features
| Remarks | •Mini Drills •Introducing unique "Mini-Drills" that utilize a single, standard CCMT insert. • Finally, a drill that lets you drill from solid, bore, internal turn and face without being locked into a special high priced insert or single source • Designed to fit directly into turret, or 1″ Boring Bar adapter. | Country of Origin | ITALY |
Shipping Info
Package Length
5.10000
Package Width
1.60000
Package Height
1.60000
Package Weight
.650
