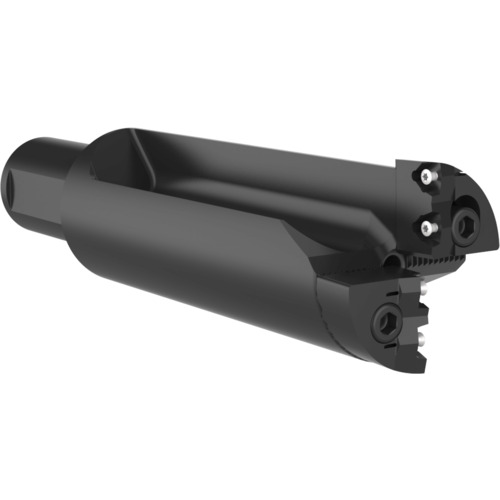

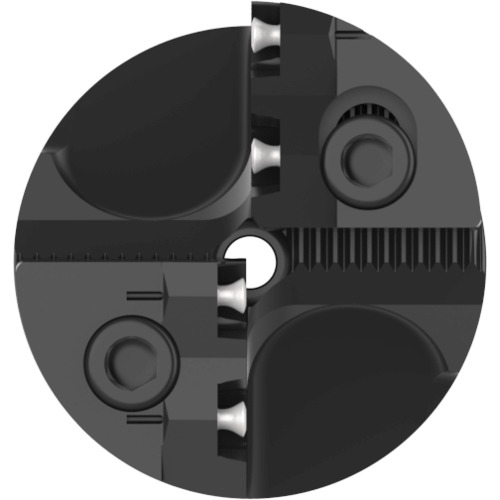

SP42X22-40M - 60.96 to 66.04 mm Dia - 4 mm Straight Shank 2.2xD Revolution Drill Holder
| Cutting Diameter (DC) | 60.96 mm to 66.04 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 146.1 mm | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Diameter Minimum (DCN) | 60.1 mm |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 66 mm |
| Protruding Length (LPR) | 172.9 mm | Measurement Type | Metric |
| Shank Length (LS) | 7 mm | Length Group | 2.2D |
| Functional Length (LF) | 146.1 mm | Master Insert Identification (MIID) | OP-05T308- |
| Overall Length (OAL) | 242.9 mm | Decimal Equivalent | 2.4″ - 2.6″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
6
