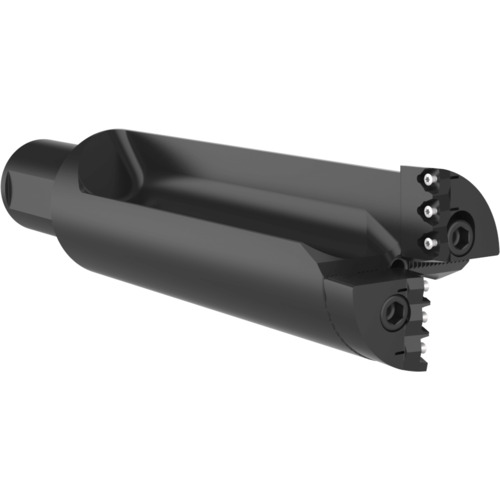

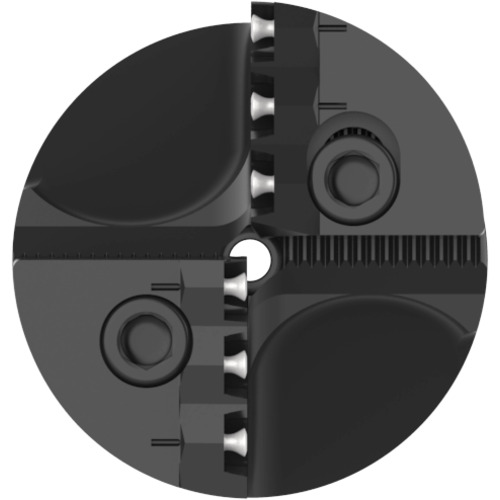

SP48X25-50M - 76.20 to 81.28 mm Dia - 5 mm Straight Shank 2.5xD Revolution Drill Holder
| Cutting Diameter (DC) | 76.2 mm to 81.28 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 202.9 mm | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Cutting Diameter Minimum (DCN) | 76.2 mm |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 81.3 mm |
| Protruding Length (LPR) | 237.2 mm | Measurement Type | Metric |
| Shank Length (LS) | 8 mm | Length Group | 2.5D |
| Functional Length (LF) | 202.9 mm | Master Insert Identification (MIID) | OP-05T308- |
| Overall Length (OAL) | 317.2 mm | Decimal Equivalent | 3″ - 3.2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
8.25
