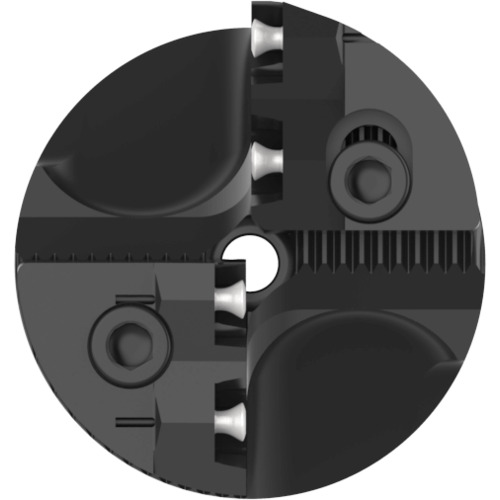

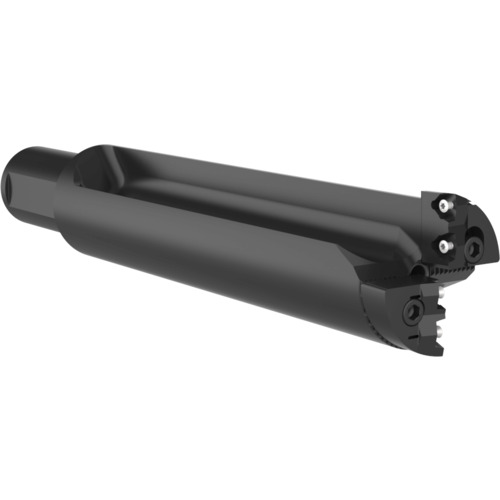

R38X35-40M - 55.88 to 60.96 mm Dia - 4 mm Straight Shank 3.5xD Revolution Drill Holder
| Cutting Diameter (DC) | 55.88 mm to 60.96 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 214.9 mm | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Diameter Minimum (DCN) | 55.9 mm |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 61 mm |
| Protruding Length (LPR) | 238.4 mm | Measurement Type | Metric |
| Shank Length (LS) | 7 mm | Length Group | 3.5D |
| Functional Length (LF) | 214.9 mm | Master Insert Identification (MIID) | OP-05T308- |
| Overall Length (OAL) | 308.4 mm | Decimal Equivalent | 2.2″ - 2.4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
6.25
