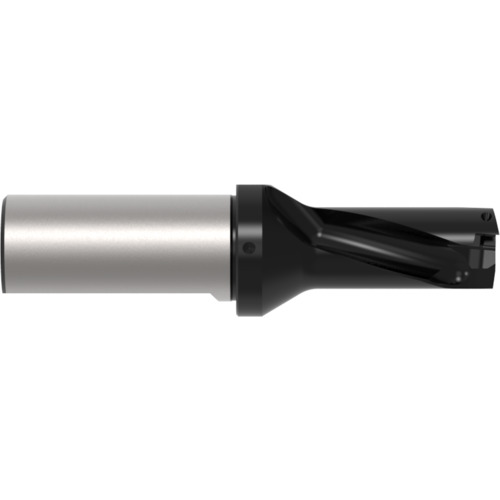

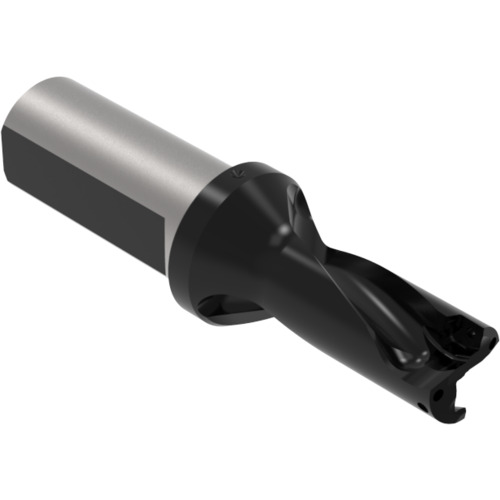

D2060812I-25FM IC Drill
Indexable Insert Drill; 13/16″ Dia. × 41.2 mm LU × 25 mm Shank Dia. × 116.4 mm OAL ; 2D
| Cutting Diameter (DC) | 13/16″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 41.2 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Minimum (DCN) | 13/16″ |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 13/16″ |
| Protruding Length (LPR) | 62.4 mm | Measurement Type | Inch |
| Functional Length (LF) | 41.2 mm | Length Group | 2D |
| Overall Length (OAL) | 116.4 mm | Master Insert Identification (MIID) | 4T-06T204 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.8125″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.0000
