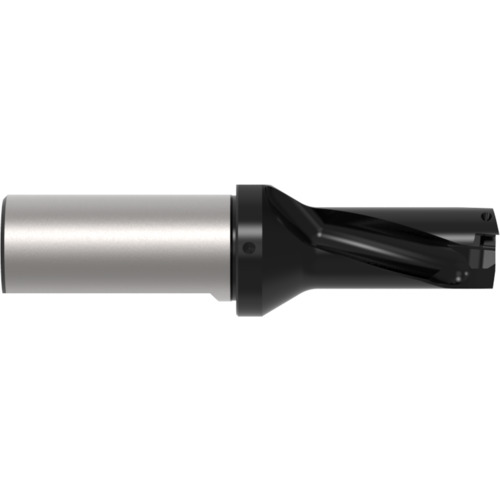

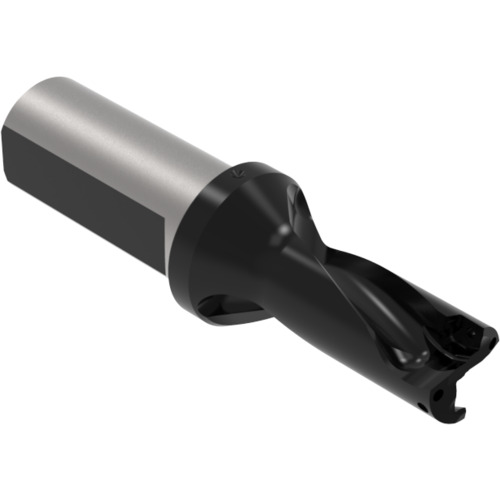

D2060750I-25FM IC Drill
Indexable Insert Drill; 3/4″ Dia. × 38.1 mm LU × 25 mm Shank Dia. × 113.4 mm OAL ; 2D
| Cutting Diameter (DC) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 38.1 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Minimum (DCN) | 3/4″ |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 3/4″ |
| Protruding Length (LPR) | 59.4 mm | Measurement Type | Inch |
| Functional Length (LF) | 38.1 mm | Length Group | 2D |
| Overall Length (OAL) | 113.4 mm | Master Insert Identification (MIID) | 4T-06T204 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.75″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.0000
