0.6250 3XD INDEXABLE DRL

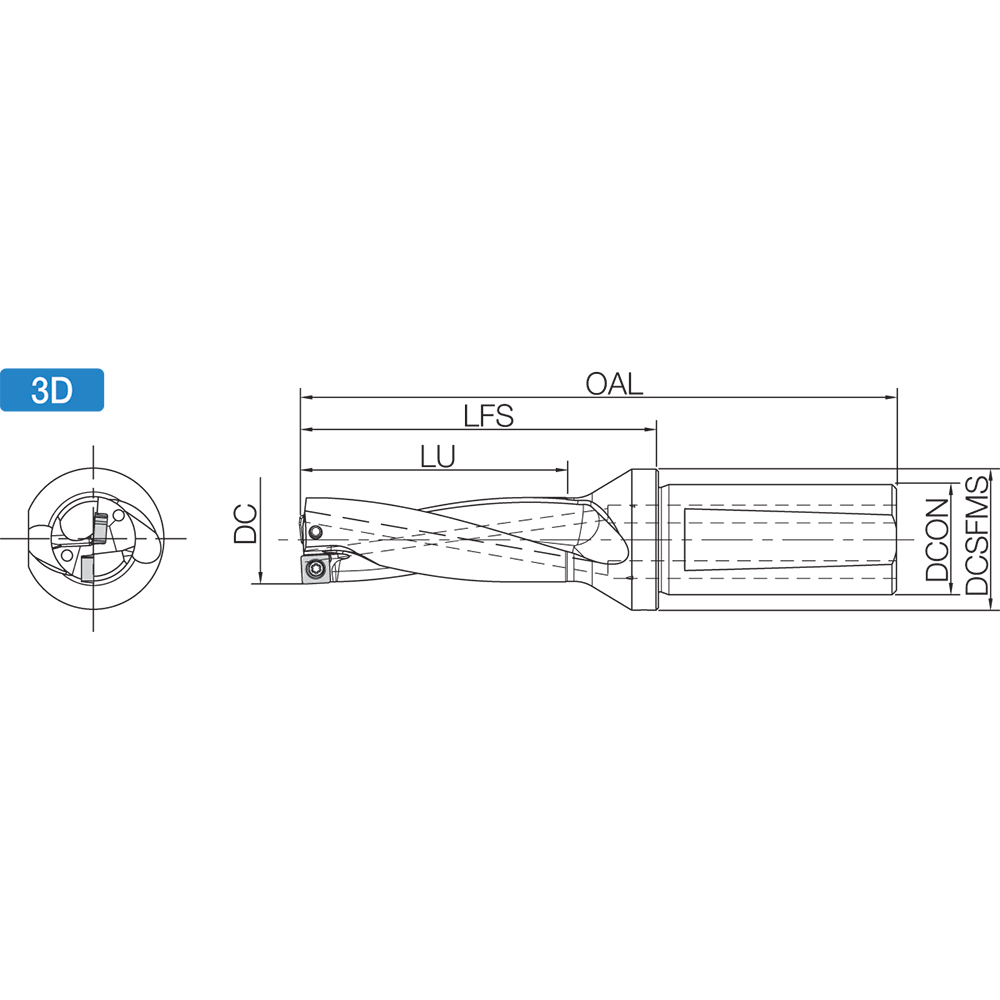

Indexable Insert Drill; 5/8″ Dia. × 1-7/8″ LU × 3/4″ Shank Dia. × 4.493″ OAL ; 3xD
| Cutting Diameter (DC) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-7/8″ | Cutting Item Count (CICT) | 2 |
| Application | Drilling | Cutting Diameter Minimum (DCN) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 5/8″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Tool Type | Indexable Drill | Length Group | 3xD |
| Overall Length (OAL) | 4.493″ | Master Insert Identification (MIID) | SCMT050205-GH-E | SCMT050205-GM-E | SCMT050205-SM-E | SCMT050205-XM-E | SCMT050210-GH-I | SCMT050210-GM-I | SCMT050210-SM-I | SCMT050210-XM-I |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 0.625″ |
Product Features
| Family Description | Alternate Manufacture # S075DRV0625305 | Country of Origin | Japan |
Shipping Info
Package Weight
.7425
