S100-DRZ 7501500-06G 0

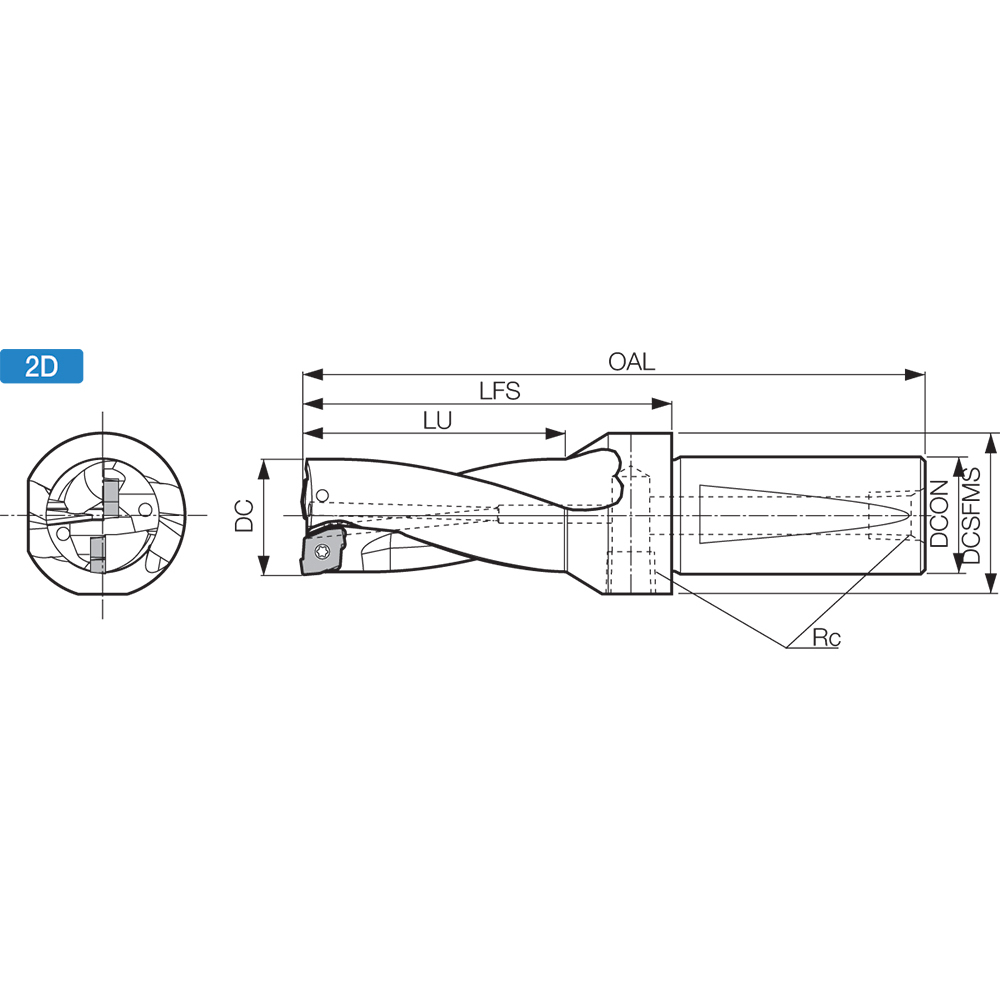

Indexable Insert Drill; 3/4″ Dia. × 1-1/2″ LU × 1″ Shank Dia. × 4.7299″ OAL ; 2D ; Steel
| Cutting Diameter (DC) | 3/4″ | Cutting Diameter Minimum (DCN) | 3/4″ |
| Usable Length (LU) | 1-1/2″ | Cutting Diameter Maximum (DCX) | 3/4″ |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Length Group | 2D |
| Shank Type | Weldon | Master Insert Identification (MIID) | ZCMT06T204 | ZCMT06T204SP | ZCMT06T204SU |
| Overall Length (OAL) | 4.7299″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 0.75″ |
| Cutting Direction (HAND) | Right Hand | Model Number | 8603869 |
| Cutting Item Count (CICT) | 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.99
