S100-DRZ 2575-08G 0

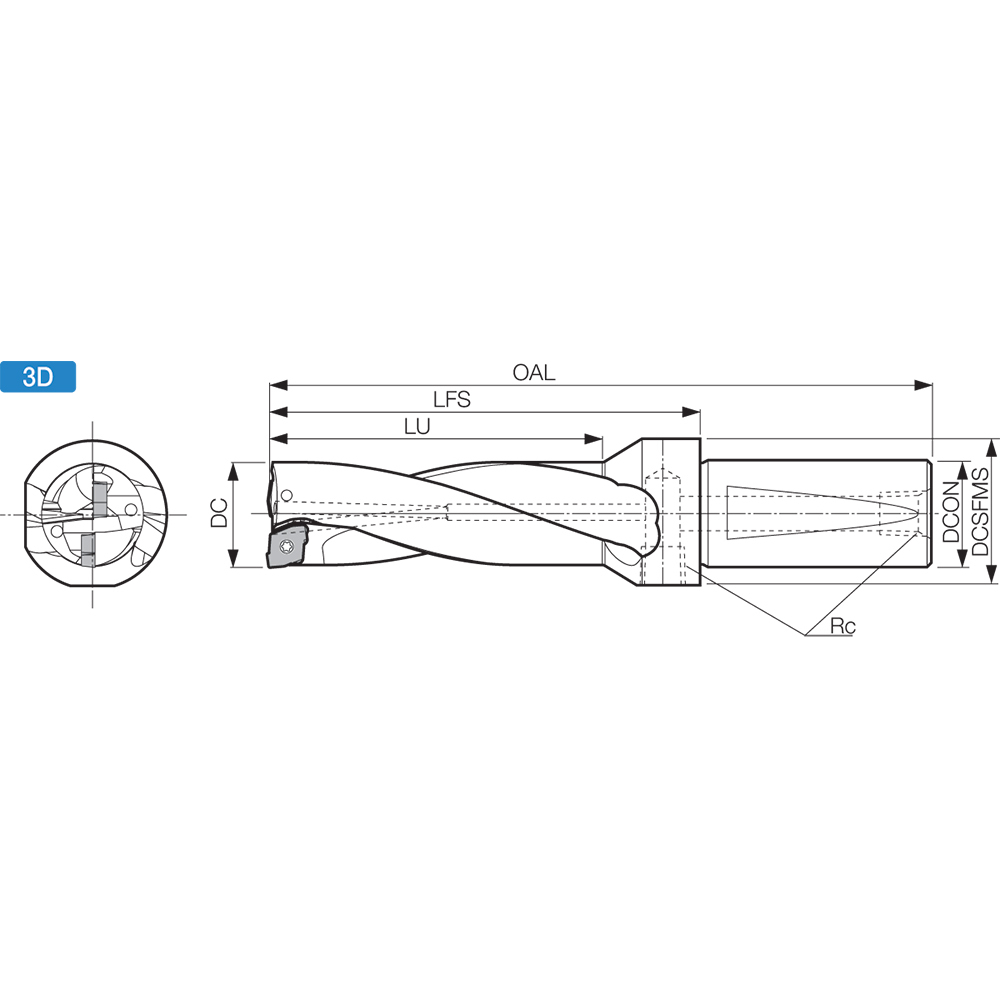

Indexable Insert Drill; 0.9839″ Dia. × 2.95″ LU × 1″ Shank Dia. × 6.1099″ OAL ; 3D ; Steel
| Cutting Diameter (DC) | 0.9839″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 2.95″ | Cutting Diameter Minimum (DCN) | 0.9839″ |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 0.9839″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Shank Type | Weldon | Length Group | 3D |
| Overall Length (OAL) | 6.1099″ | Master Insert Identification (MIID) | ZCMT080304 | ZCMT080304SP |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8603867 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.9900
Related Documentation
