CD-2660-C 0

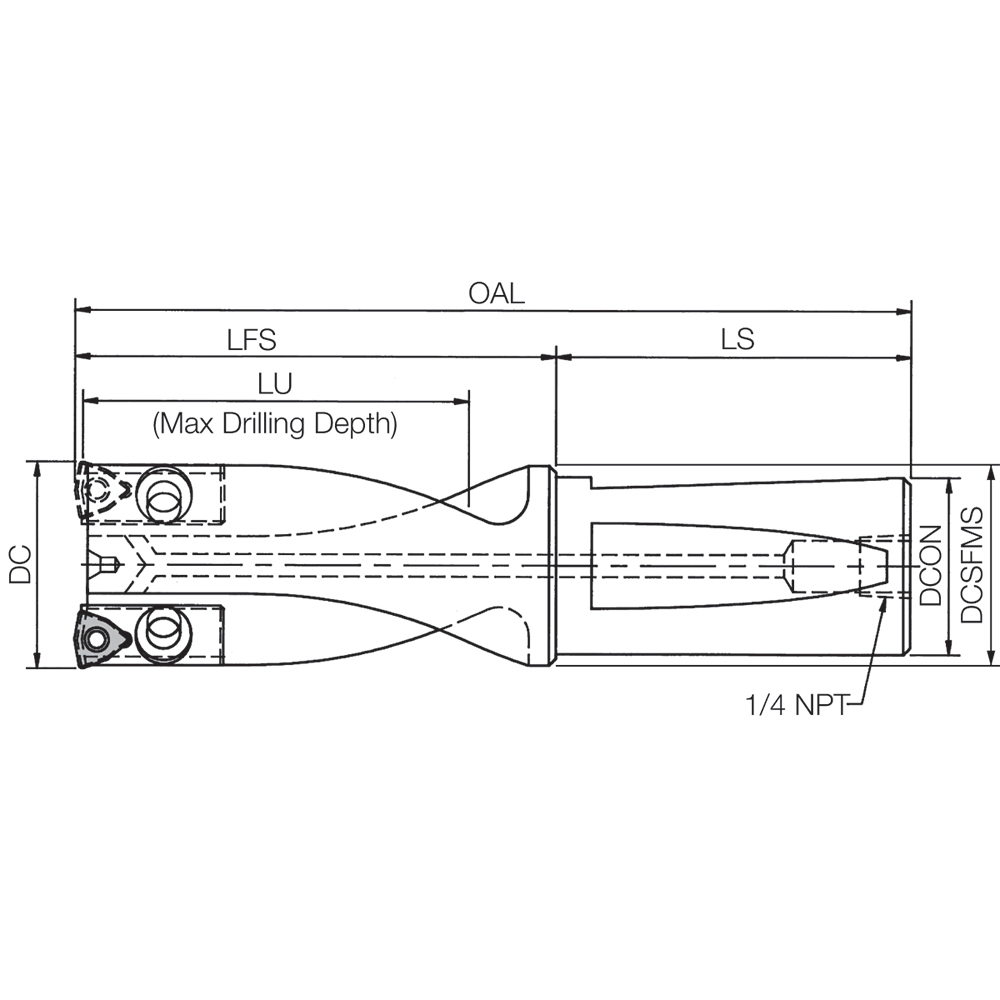

| Usable Length (LU) | 3.1252″ | Cutting Item Count (CICT) | 2 |
| Application | Drilling | Cutting Diameter Minimum (DCN) | 2.6598″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Diameter Maximum (DCX) | 2.7598″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Shank Length (LS) | 3″ | Master Insert Identification (MIID) | WCMX050308-M1 | WCMX050308-M1A |
| Overall Length (OAL) | 7″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 2.6598 - 2.7598″ |
| Cutting Direction (HAND) | Right Hand | Model Number | 8600705 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.9900
