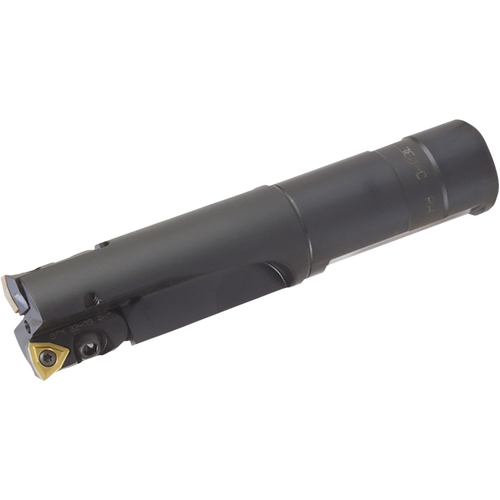

CD1500LC COREMASTER DRILL

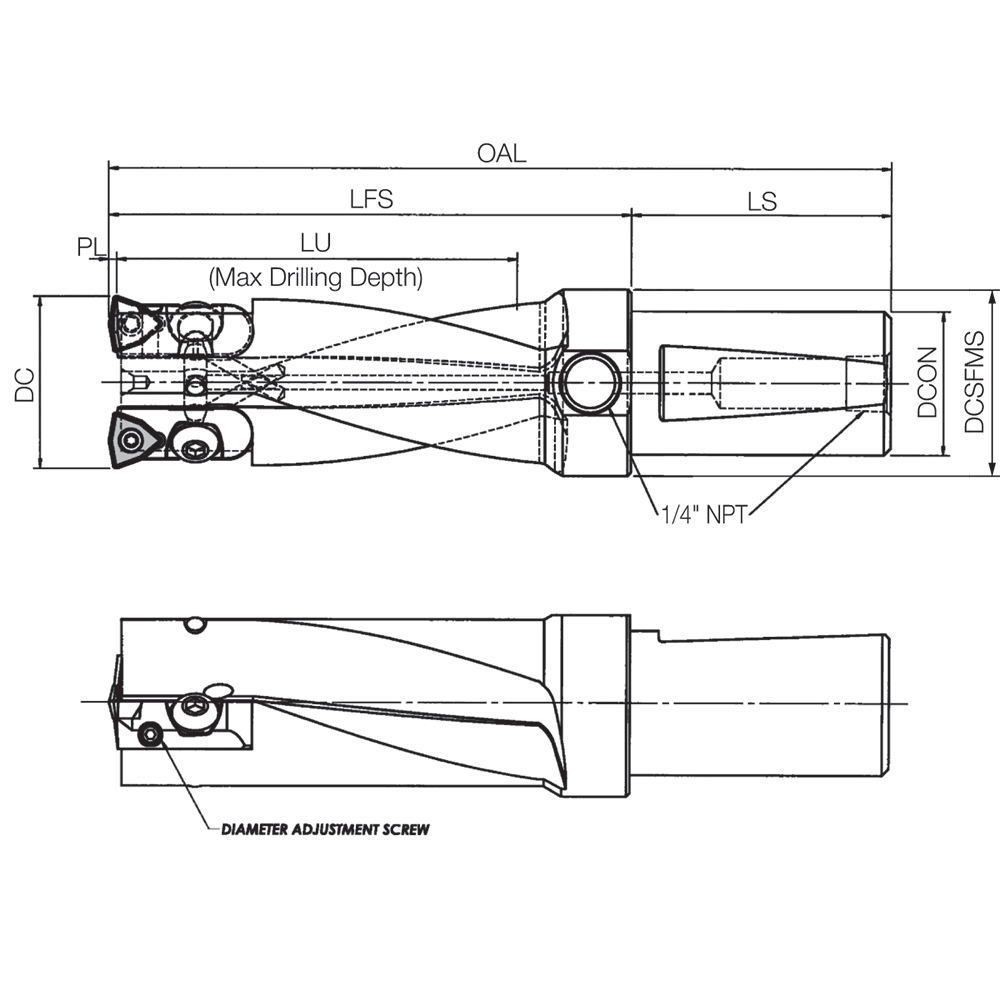

| Usable Length (LU) | 3-1/2″ | Cutting Item Count (CICT) | 2 |
| Application | Drilling | Cutting Diameter Minimum (DCN) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1.65″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Shank Length (LS) | 2.2799″ | Master Insert Identification (MIID) | WCMX06T308-M1 | WCMX06T308-M1A |
| Overall Length (OAL) | 6.7799″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 1.5 - 1.65″ |
| Cutting Direction (HAND) | Right Hand | Model Number | 8600686 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.0000
Related Documentation
