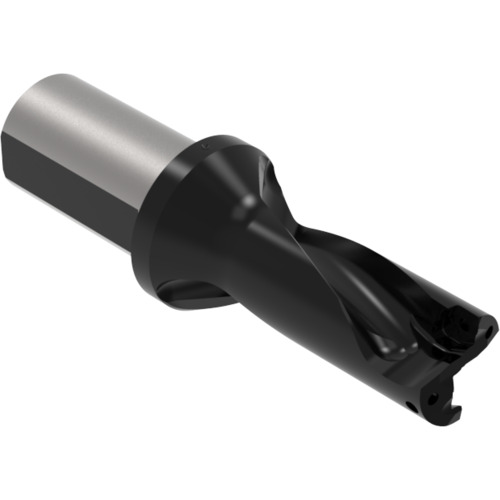

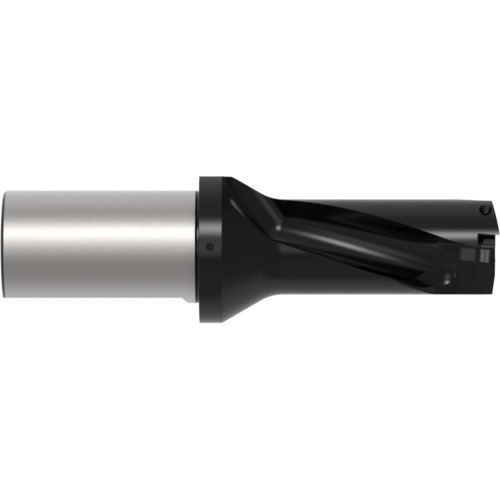

D2113300M-150F IC Drill
Indexable Insert Drill; 33 mm Dia. × 2.598″ LU × 1-1/2″ Shank Dia. × 6.748″ OAL ; 2D
| Cutting Diameter (DC) | 33 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2.598″ | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Diameter Minimum (DCN) | 33 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 33 mm |
| Protruding Length (LPR) | 4.031″ | Measurement Type | Metric |
| Functional Length (LF) | 2.598″ | Length Group | 2D |
| Overall Length (OAL) | 6.748″ | Master Insert Identification (MIID) | 4T-11T306 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 1.2992″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15.0000
