1 2XD INDEXABLE DRL

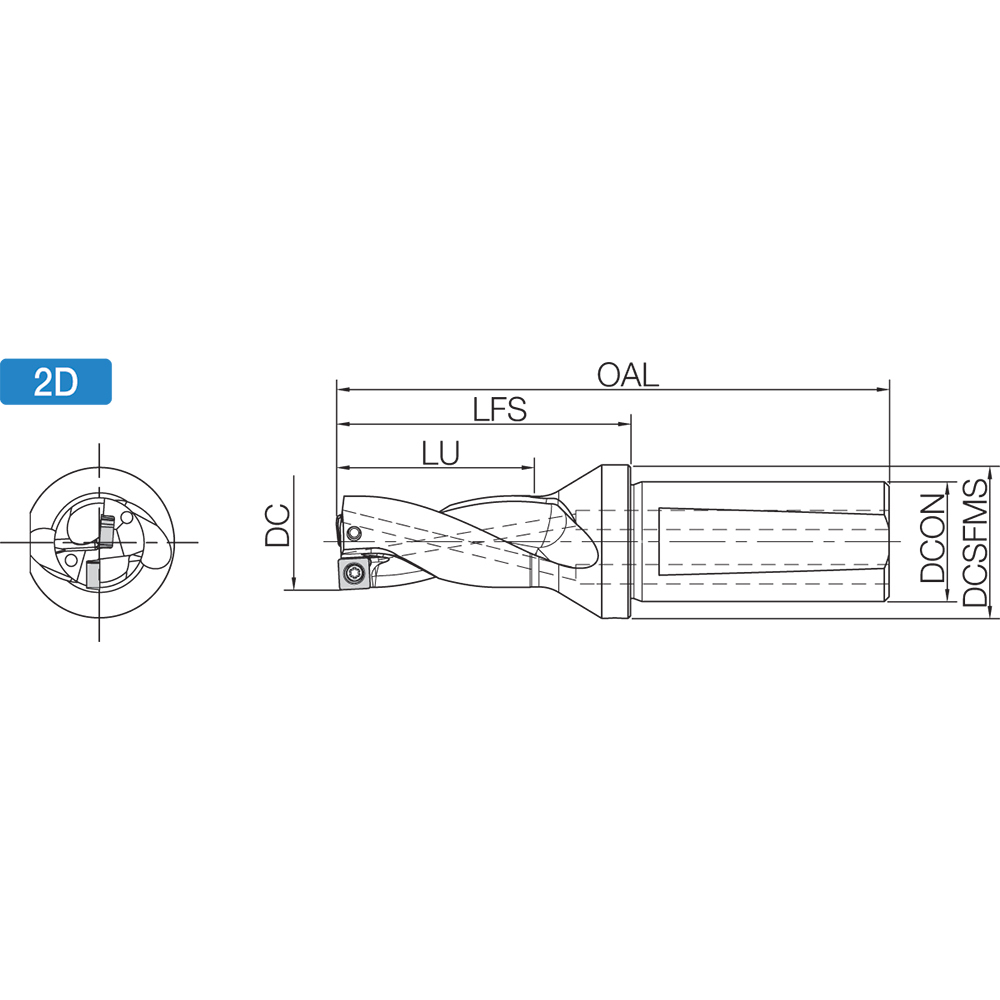

Indexable Insert Drill; 1″ Dia. × 2″ LU × 1″ Shank Dia. × 4.949″ OAL ; 2xD
| Cutting Diameter (DC) | 1″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2″ | Cutting Item Count (CICT) | 2 |
| Application | Drilling | Cutting Diameter Minimum (DCN) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Tool Type | Indexable Drill | Length Group | 2xD |
| Overall Length (OAL) | 4.949″ | Master Insert Identification (MIID) | SCMT070305-GH-E | SCMT070305-GM-E | SCMT070305-SM-E | SCMT070305-XM-E | SCMT070310-GH-I | SCMT070310-GM-I | SCMT070310-SM-I | SCMT070310-XM-I |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 1″ |
Product Features
| Family Description | Alternate Manufacture # S100DRV1000207 | Country of Origin | Japan |
Shipping Info
Package Weight
1.0853
