0.6880 6XD INDEXABLE DRL

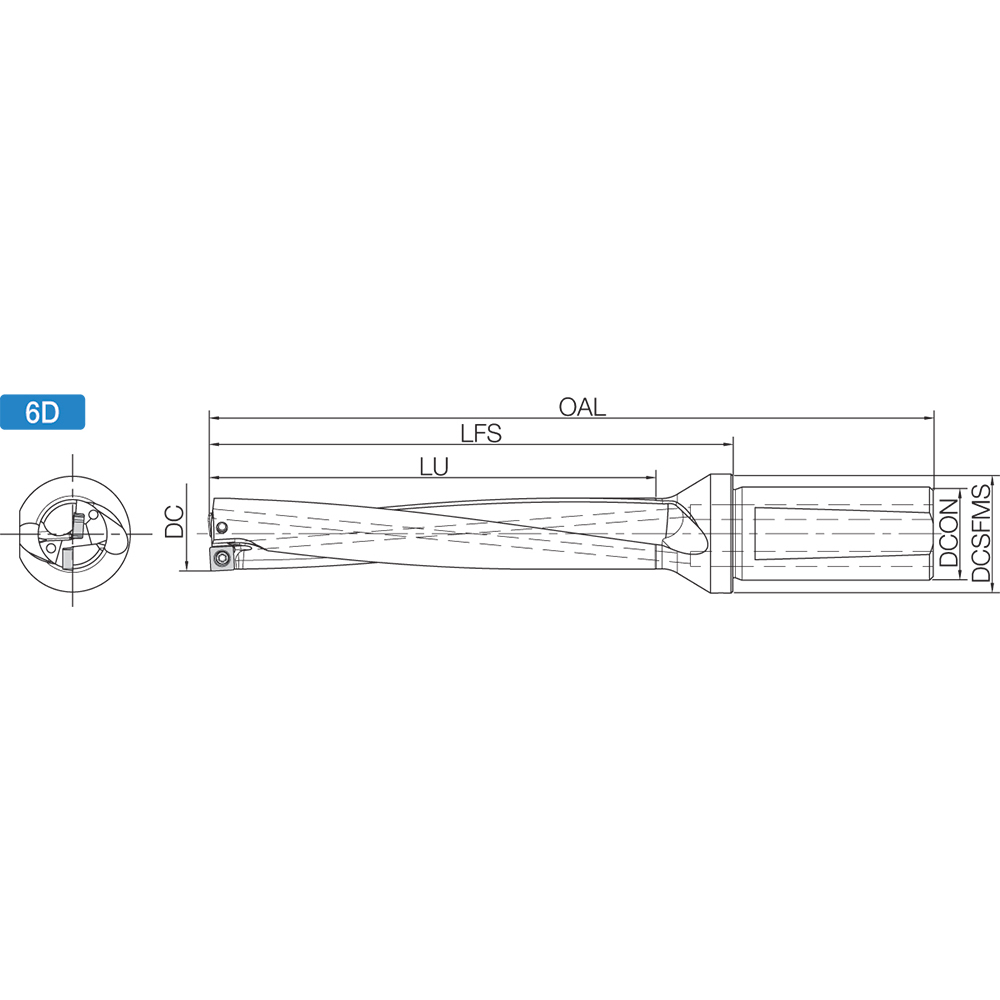

Indexable Insert Drill; 0.688″ Dia. × 4-1/8″ LU × 1″ Shank Dia. × 7.179″ OAL ; 6D
| Cutting Diameter (DC) | 0.688″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 4-1/8″ | Cutting Item Count (CICT) | 2 |
| Application | Drilling | Cutting Diameter Minimum (DCN) | 0.688″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 0.688″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Tool Type | Indexable Drill | Length Group | 6D |
| Overall Length (OAL) | 7.179″ | Master Insert Identification (MIID) | SCMT050205-GH-E | SCMT050205-GM-E | SCMT050205-SM-E | SCMT050205-XM-E | SCMT050210-GH-I | SCMT050210-GM-I | SCMT050210-SM-I | SCMT050210-XM-I |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 0.688″ |
Product Features
| Family Description | Alternate Manufacture # S100DRV0688605 | Country of Origin | Japan |
Shipping Info
Package Weight
.8300
