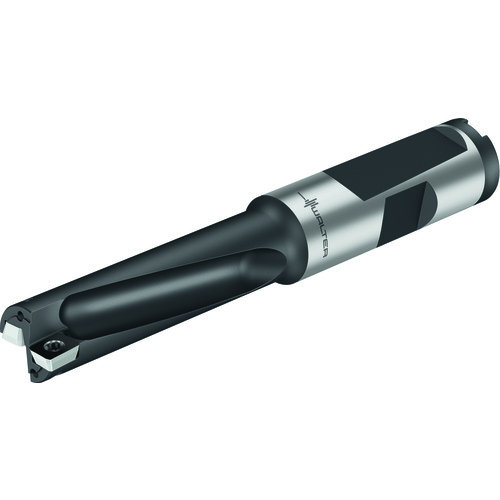

15.5mm Dia. × 46.5mm LOC × 110 mm OAL × 16mm Shank Indexable Drill
Indexable Insert Drill; 15.5 mm Dia. × 46.5 mm LU × 16 mm Shank Dia. × 110 mm OAL ; 3D
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 15.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 46.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Length Group | 3D |
| Shank Type | Whistle Notch | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 58 mm | Flute Type | Straight |
| Shank Length (LS) | 49 mm | Helix Angle | 0 Degrees|CW |
| Functional Length (LF) | 60.1 mm | Decimal Equivalent | 0.6102″ |
| Overall Length (OAL) | 110 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.265
