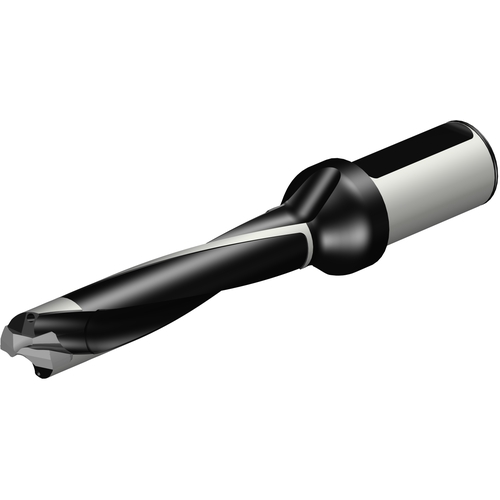

870-2400-24LX125-5 CORODRILL 870
Indexable Insert Drill; 0.98″ Dia. × 5.07″ LU × 1-1/4″ Shank Dia. × 8.622″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.98″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5.07″ | Cutting Diameter Minimum (DCN) | 0.945″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 0.984″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 5xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 5.2″ | Body Material | Steel |
| Functional Length (LF) | 6.111″ | Decimal Equivalent | 0.98″ |
| Overall Length (OAL) | 8.622″ | Model Number | 870-2400-24LX125-5 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.983
