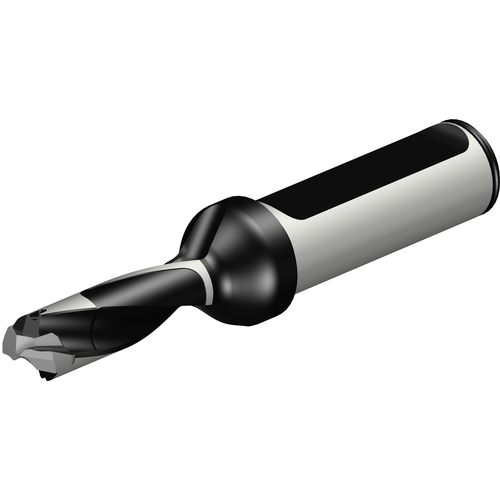

870-1100-8L16-3 CORODRILL 870
Indexable Insert Drill; 11.4 mm Dia. × 36.2 mm LU × 16 mm Shank Dia. × 99 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 11.4 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 36.2 mm | Cutting Diameter Minimum (DCN) | 11 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 11.49 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 38 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 49.25 mm | Body Material | Steel |
| Overall Length (OAL) | 99 mm | Decimal Equivalent | 0.4488″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1100-8L16-3 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.320
