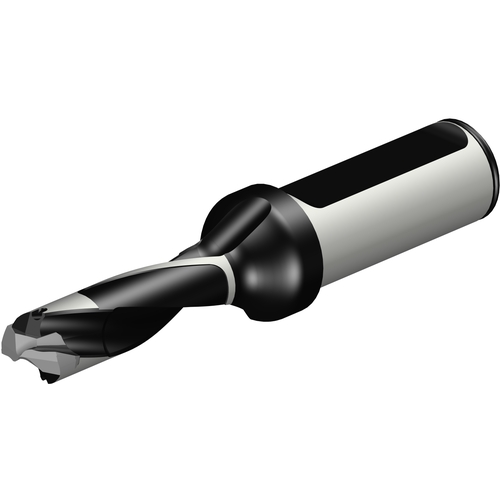

870140014L203 DRILL
Indexable Insert Drill; 14.9 mm Dia. × 47.3 mm LU × 20 mm Shank Dia. × 116 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 14.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 47.3 mm | Cutting Diameter Minimum (DCN) | 14 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 14.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 50 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 63.72 mm | Body Material | Steel |
| Overall Length (OAL) | 116 mm | Decimal Equivalent | 0.5866″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1400-14L20-3 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.481
