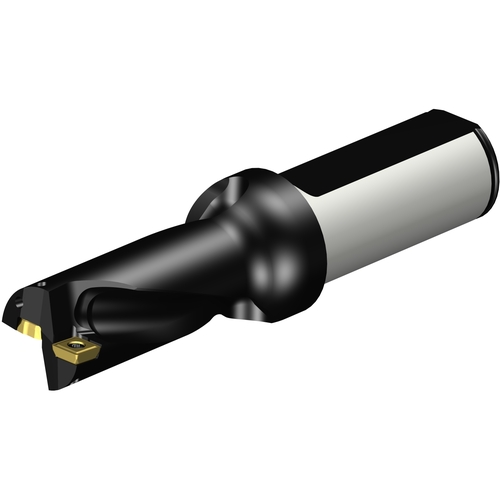

880-D2300L25-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 23 mm Dia. × 46 mm LU × 25 mm Shank Dia. × 125 mm OAL ; Steel
| Cutting Diameter (DC) | 23 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 46 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 50 mm | Body Material | Steel |
| Functional Length (LF) | 68.55 mm | Decimal Equivalent | 0.9055″ |
| Overall Length (OAL) | 125 mm | Model Number | 880-D2300L25-02 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.836
