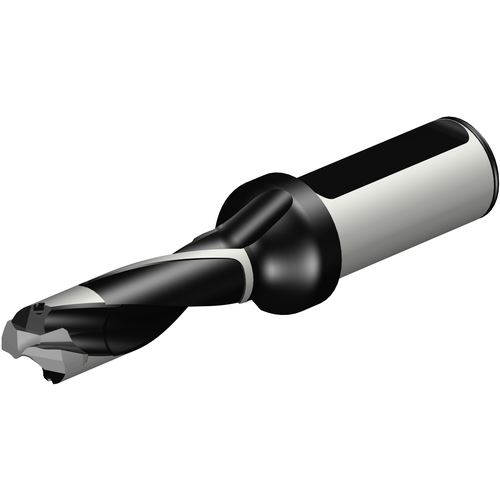

870-1900-19L25-3 CORODRILL 870
Indexable Insert Drill; 19.9 mm Dia. × 63 mm LU × 25 mm Shank Dia. × 142 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 19.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 63 mm | Cutting Diameter Minimum (DCN) | 19 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 19.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 66 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 82.98 mm | Body Material | Steel |
| Overall Length (OAL) | 142 mm | Decimal Equivalent | 0.7835″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1900-19L25-3 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.911
