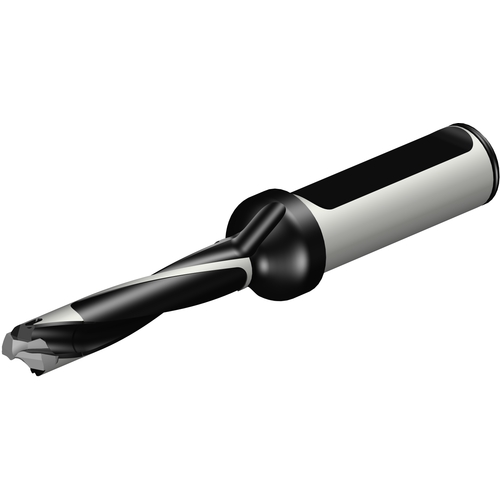

870-1000-6LX063-5 CORODRILL 870
Indexable Insert Drill; 0.409″ Dia. × 2.13″ LU × 5/8″ Shank Dia. × 4.606″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.409″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2.13″ | Cutting Diameter Minimum (DCN) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.413″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 2.2″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 2.654″ | Body Material | Steel |
| Overall Length (OAL) | 4.606″ | Decimal Equivalent | 0.409″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1000-6LX063-5 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.325
