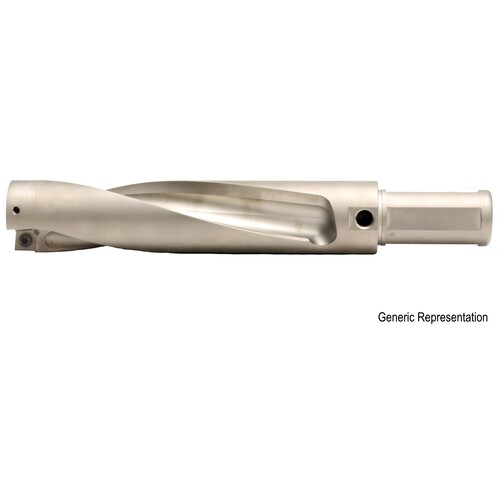

WDX1687D4S150-L Indexable Drill
Indexable Insert Drill; 1-11/16″ Dia. × 6.949″ LU × 1-1/2″ Shank Dia. × 11.602″ OAL
| Cutting Diameter (DC) | 1-11/16″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6.949″ | Connection Thread Size (Ts) | NPT 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Shank Length (LS) | 3″ | Master Insert Identification (MIID) | WDXT125012 |
| Functional Length (LF) | 8.602″ | Decimal Equivalent | 1.6875″ |
| Overall Length (OAL) | 11.602″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3
