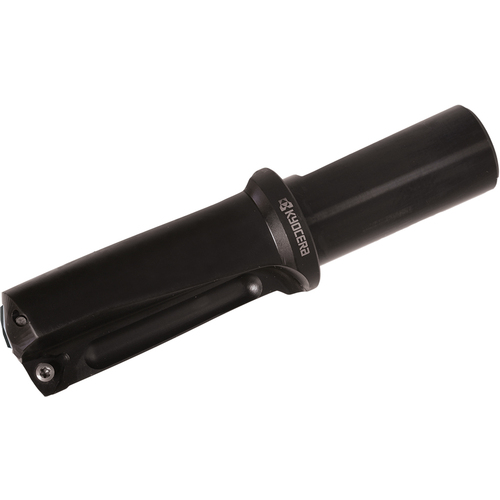

DR0984, HOLESHOT Drill 0.9840″ Cutting Diameter, Indexable Insert Drill
Indexable Insert Drill; 0.9839″ Dia. × 1-3/4″ LU × 1″ Shank Dia. × 4.7799″ OAL ; Steel

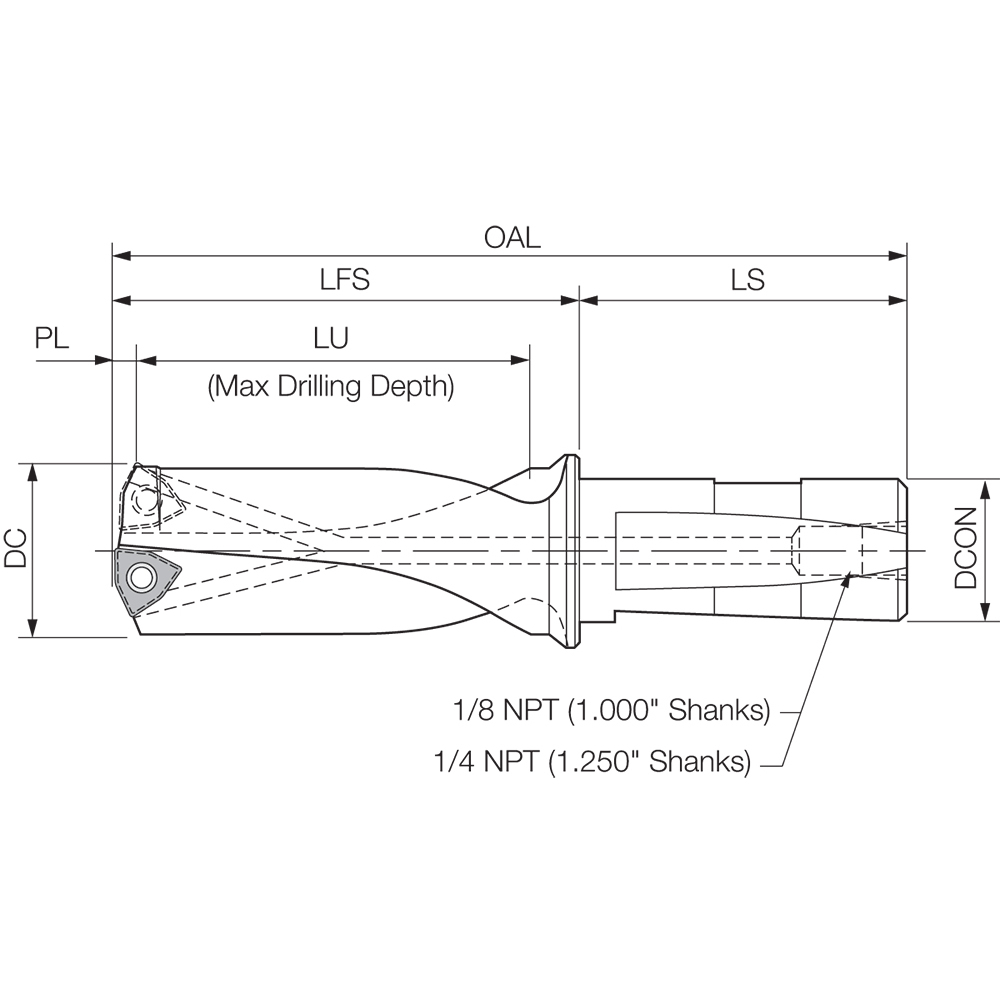

| Cutting Diameter (DC) | 0.9839″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 1-3/4″ | Cutting Diameter Minimum (DCN) | 0.9839″ |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 0.9839″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.1449″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Shank Length (LS) | 2.2799″ | Master Insert Identification (MIID) | WCMX050308-M1 | WCMX050308-M1A |
| Overall Length (OAL) | 4.7799″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 8600786 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.850
