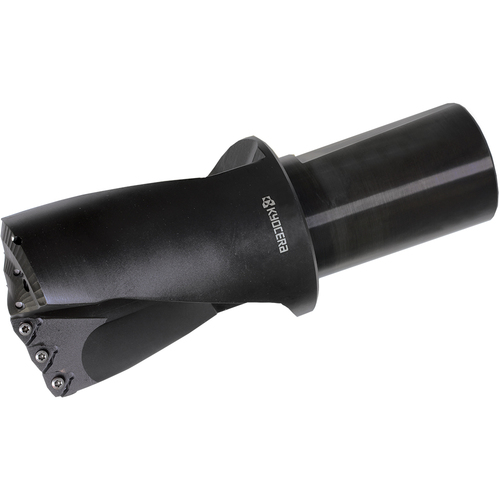

DR2219, HOLESHOT Drill 2.2190″ Cutting Diameter, Indexable Insert Drill
Indexable Insert Drill; 2.2189″ Dia. × 3.8799″ LU × 1-1/2″ Shank Dia. × 7.8099″ OAL ; Steel

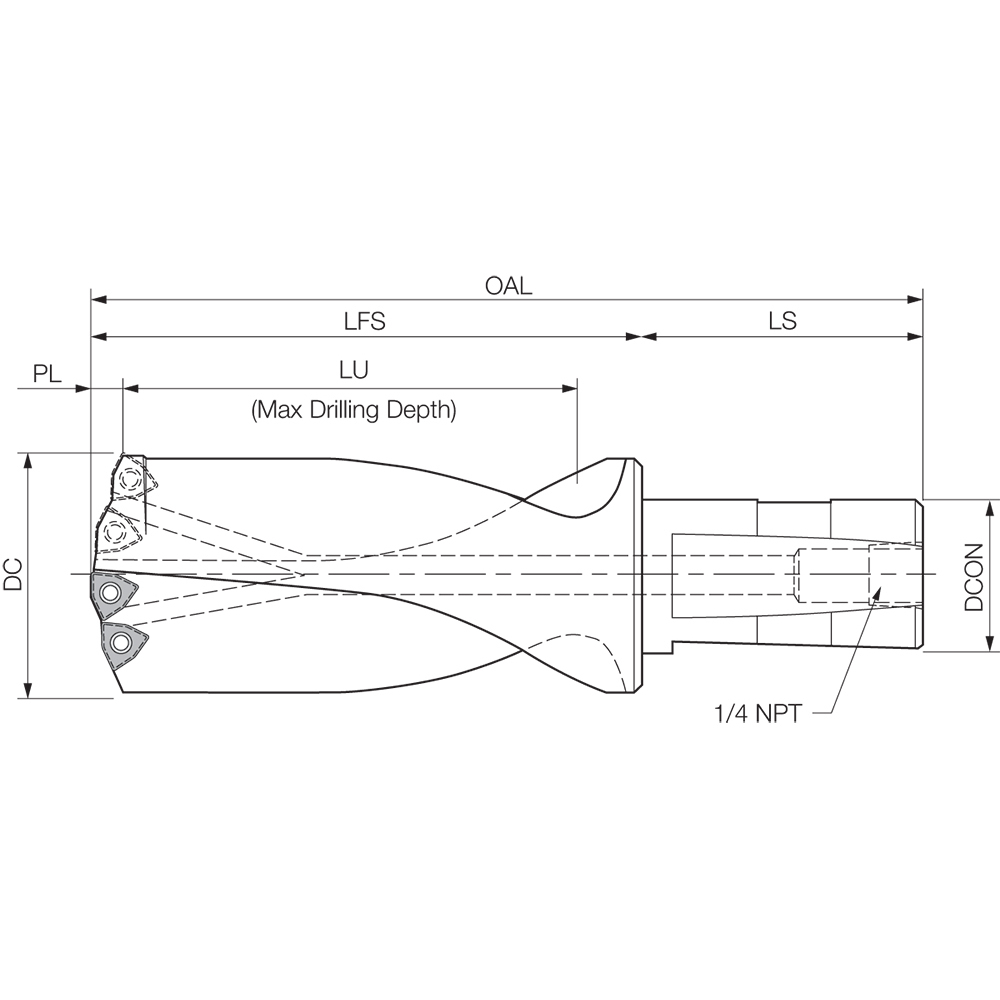

| Cutting Diameter (DC) | 2.2189″ | Cutting Item Count (CICT) | 4 |
| Usable Length (LU) | 3.8799″ | Cutting Diameter Minimum (DCN) | 2.2189″ |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 2.2189″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Point Length (PL) | 0.2772″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Shank Length (LS) | 2.6902″ | Master Insert Identification (MIID) | WCMX06T308-M1 | WCMX06T308-M1A |
| Overall Length (OAL) | 7.8099″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 2.2189″ |
| Cutting Direction (HAND) | Right Hand | Model Number | 8600922 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
4.050
