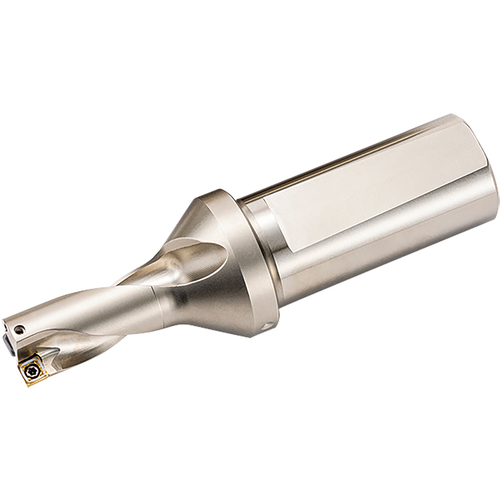

S20DRV150M204, DRV Magic Drill 15.00mm Cutting Diameter, 2xD, Coolant-Through Indexable Insert Drill

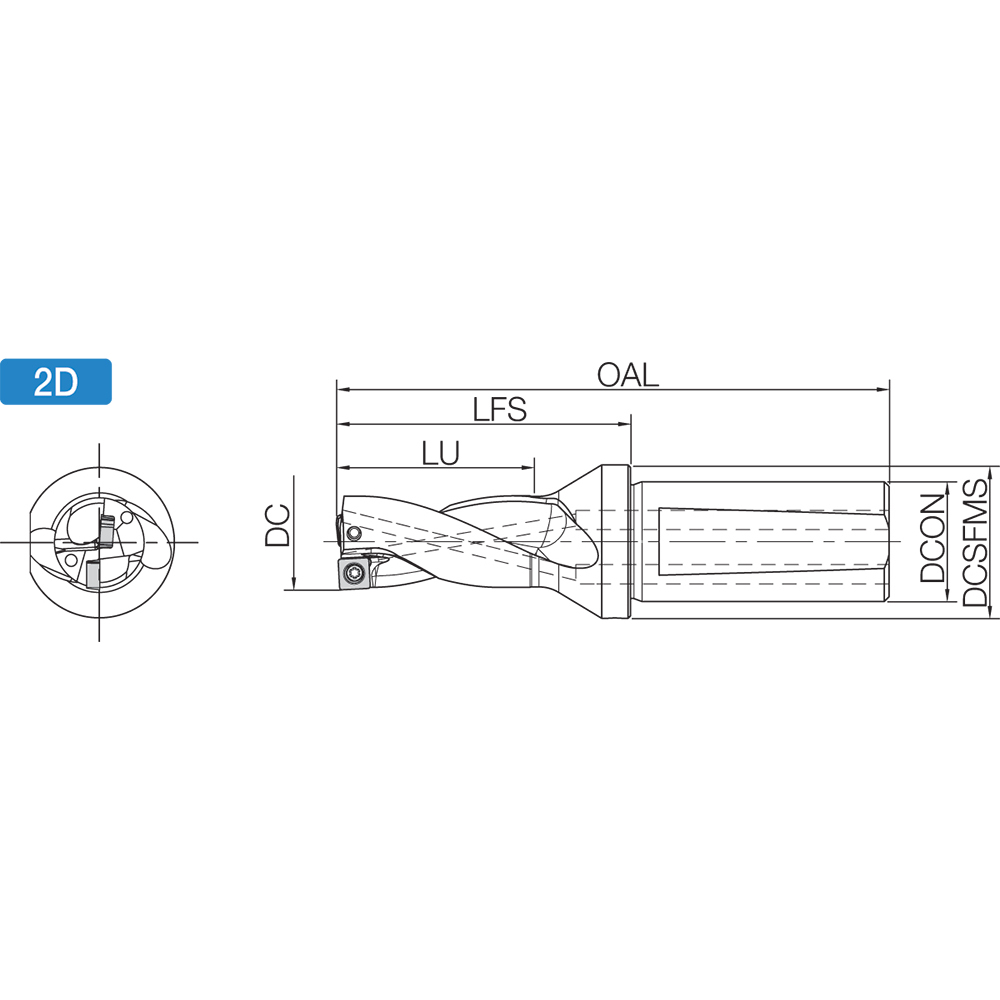

Indexable Insert Drill; 15 mm Dia. × 30 mm LU × 20 mm Shank Dia. × 94 mm OAL ; 2D ; Steel
| Cutting Diameter (DC) | 15 mm | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 30 mm | Cutting Diameter Minimum (DCN) | 15 mm |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 15 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Shank Type | Weldon | Length Group | 2D |
| Overall Length (OAL) | 94 mm | Master Insert Identification (MIID) | SCMT040205--E | SCMT040209--I |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8858489 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.440
