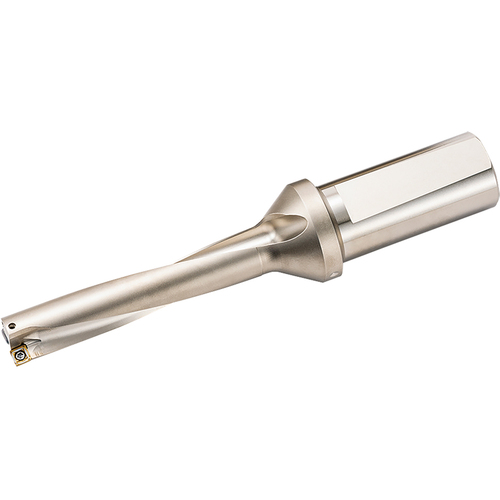

S25DRV190M506, DRV Magic Drill 19.00mm Cutting Diameter, 5xD, Coolant-Through Indexable Insert Drill

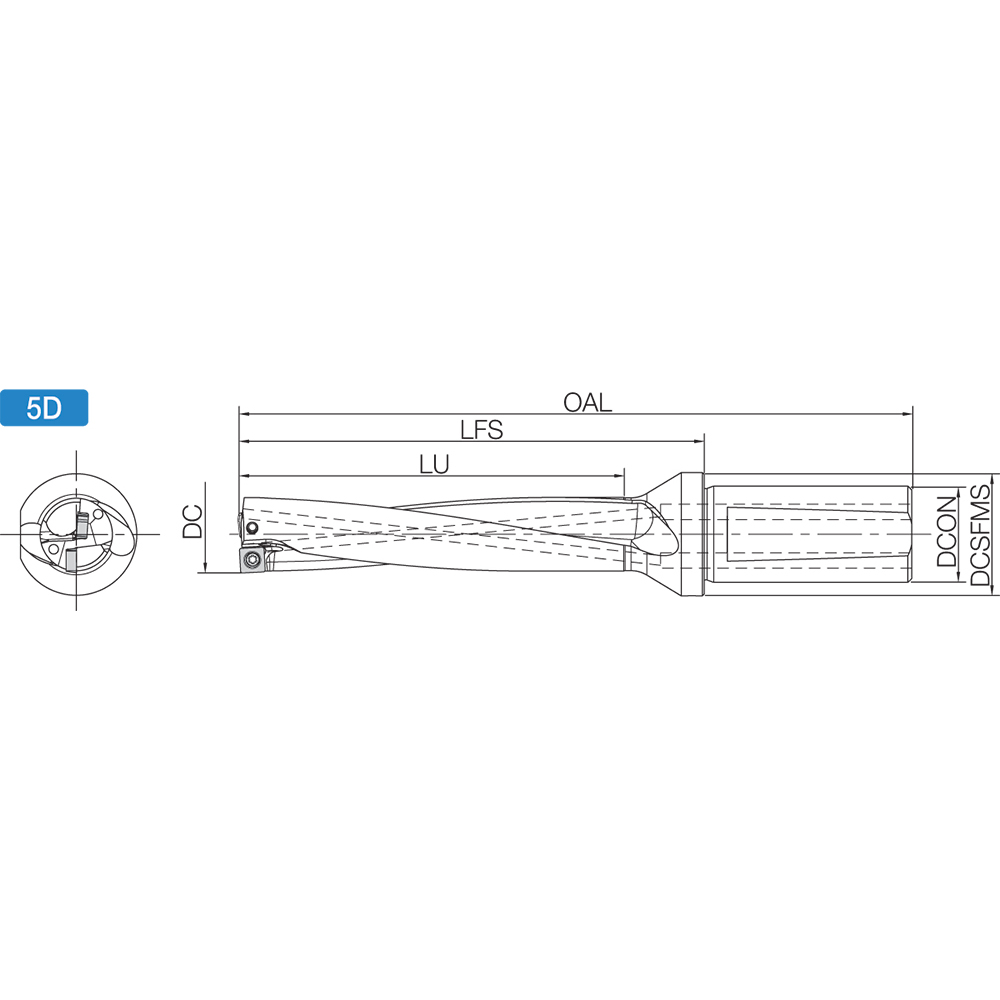

Indexable Insert Drill; 19 mm Dia. × 95 mm LU × 25 mm Shank Dia. × 170 mm OAL ; 5D ; Steel
| Cutting Diameter (DC) | 19 mm | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 95 mm | Cutting Diameter Minimum (DCN) | 19 mm |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 19 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Type | Weldon | Length Group | 5D |
| Overall Length (OAL) | 170 mm | Master Insert Identification (MIID) | SCMT060205--E | SCMT060210--I |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8858591 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.008
