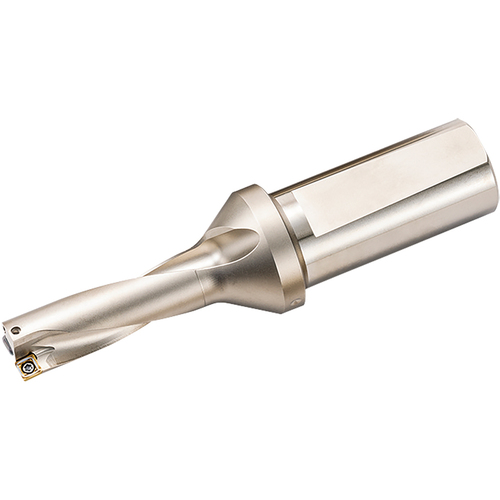

S25DRV250M307, DRV Magic Drill 25.00mm Cutting Diameter, 3xD, Coolant-Through Indexable Insert Drill

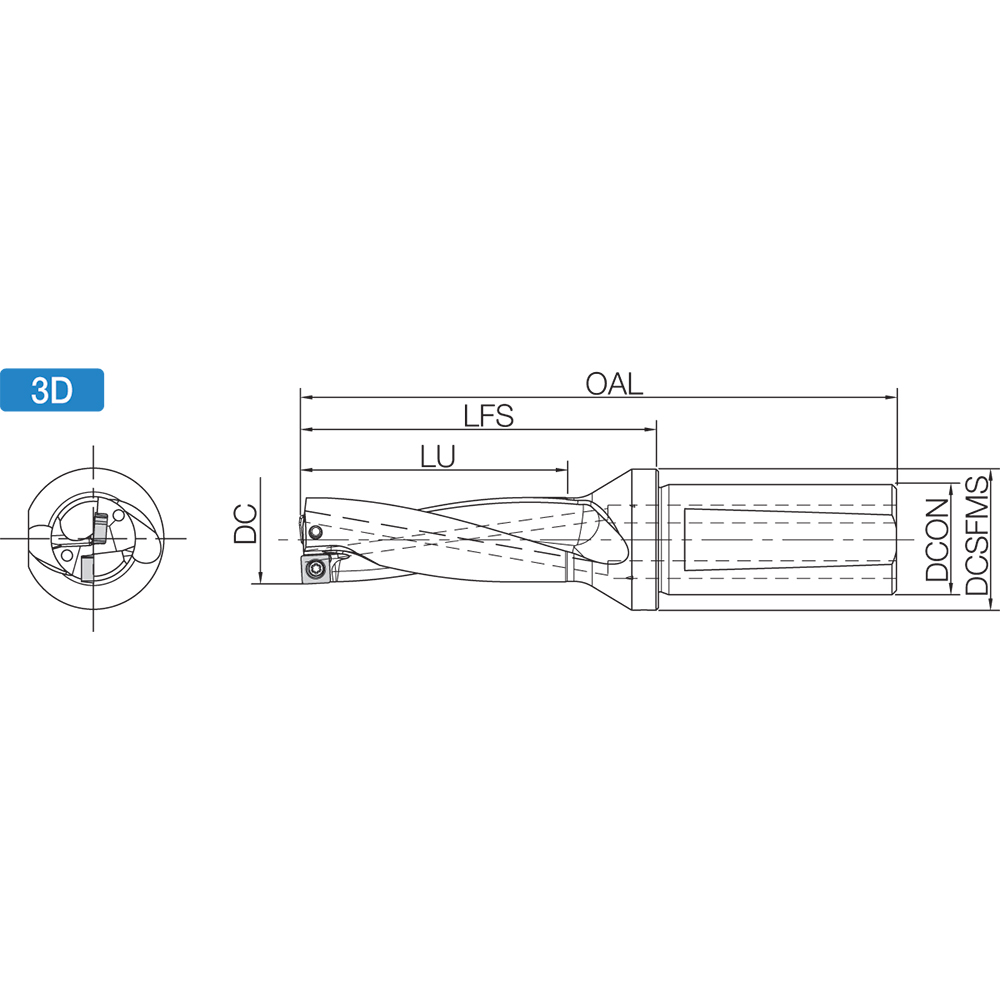

Indexable Insert Drill; 25 mm Dia. × 75 mm LU × 25 mm Shank Dia. × 150 mm OAL ; 3D ; Steel
| Cutting Diameter (DC) | 25 mm | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 75 mm | Cutting Diameter Minimum (DCN) | 25 mm |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Type | Weldon | Length Group | 3D |
| Overall Length (OAL) | 150 mm | Master Insert Identification (MIID) | SCMT070305--E | SCMT070310--I |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8858540 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
1.191
Related Documentation
