S40DRZ4321515, DRZ Magic Drill 43.00mm Cutting Diameter, 5xD, Coolant-Through Indexable Insert Drill

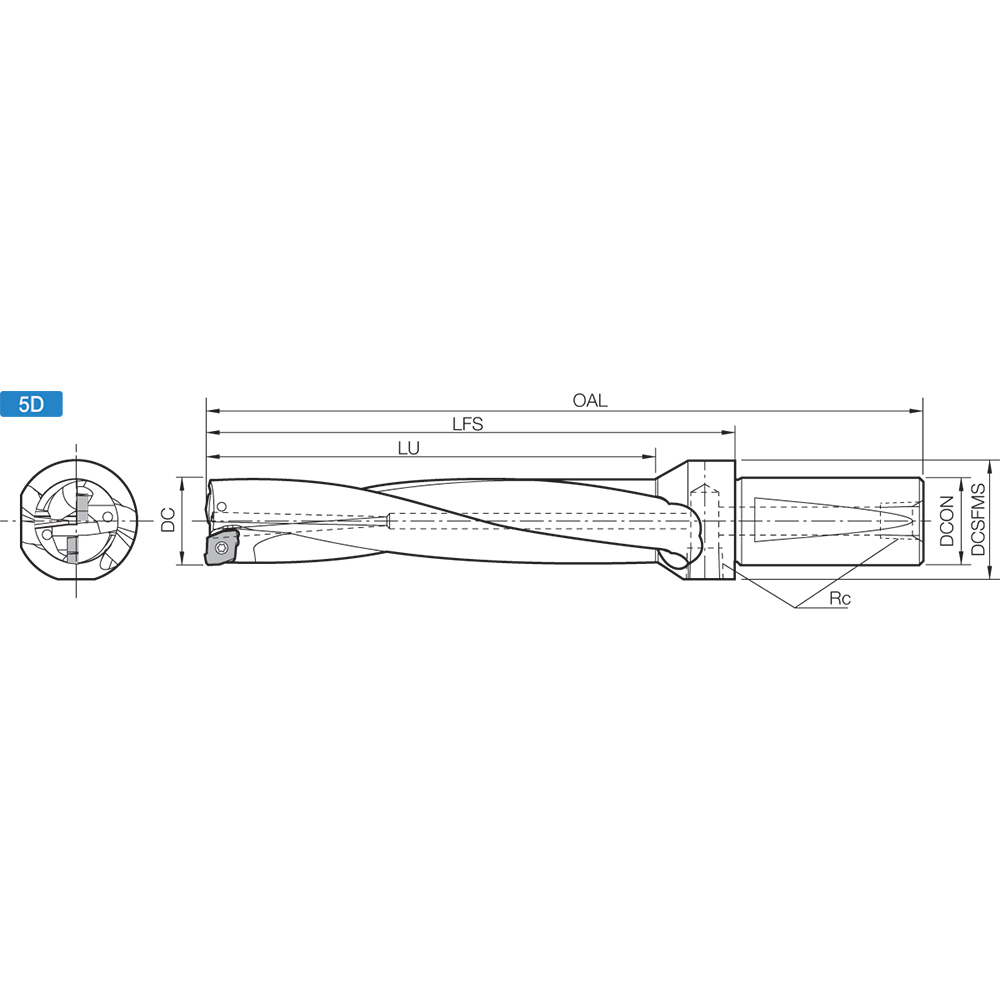

Indexable Insert Drill; 43 mm Dia. × 215 mm LU × 40 mm Shank Dia. × 316 mm OAL ; 5D ; Steel
| Cutting Diameter (DC) | 43 mm | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 215 mm | Cutting Diameter Minimum (DCN) | 43 mm |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 43 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Shank Type | Weldon | Length Group | 5D |
| Overall Length (OAL) | 316 mm | Master Insert Identification (MIID) | ZCMT150408 | ZCMT150406SP |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Model Number | 8806712 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
6.223
