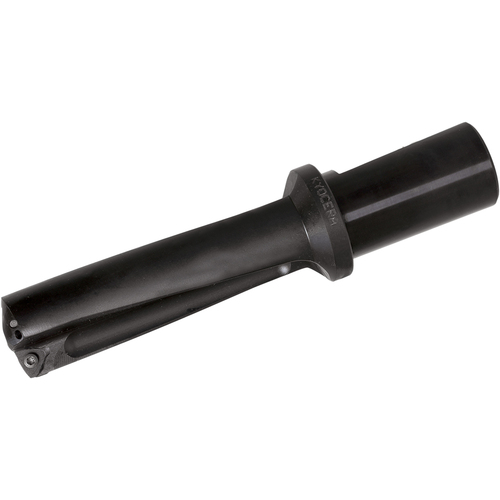

DR1562X3N, HOLESHOT Drill 1.5625″ Cutting Diameter, Indexable Insert Drill
Indexable Insert Drill; 1.5626″ Dia. × 4.6799″ LU × 1-1/4″ Shank Dia. × 8.1701″ OAL ; Steel
| Cutting Diameter (DC) | 1.5626″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 4.6799″ | Cutting Diameter Minimum (DCN) | 1.5626″ |
| Application | Drilling | Cutting Diameter Maximum (DCX) | 1.5626″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.2118″ |
| Shank Type | Weldon | Measurement Type | Inch |
| Shank Length (LS) | 2.2799″ | Master Insert Identification (MIID) | WCMX06T308-M1 | WCMX06T308-M1A |
| Overall Length (OAL) | 8.1701″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 8600847 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.450
