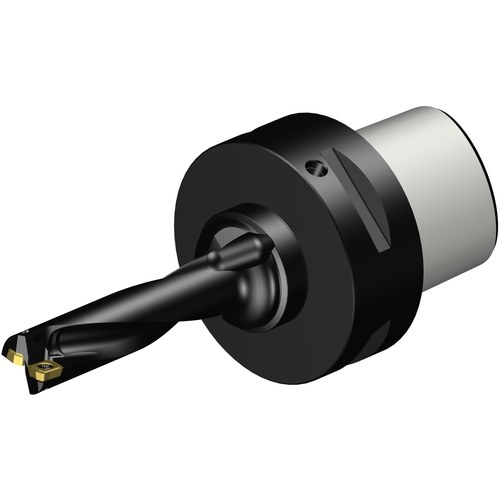

880-D1270C5-04 CORODRILL 880 CAPTO
Indexable Insert Drill; 12.7 mm Dia. × 51 mm LU x #5 Shank Dia. × 116 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12.7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 51 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #5 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 53 mm | Body Material | Steel |
| Functional Length (LF) | 85.62 mm | Decimal Equivalent | 0.5″ |
| Overall Length (OAL) | 116 mm | Model Number | 880-D1270C5-04 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.199
