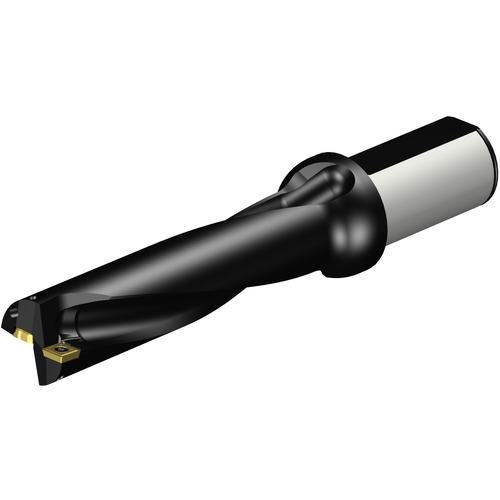

A880-D1375LX38-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1-3/8″ Dia. × 5-1/2″ LU × 1-1/2″ Shank Dia. × 9.428″ OAL ; Steel
| Cutting Diameter (DC) | 1-3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 5.66″ | Body Material | Steel |
| Shank Length (LS) | 2.756″ | Decimal Equivalent | 1.375″ |
| Functional Length (LF) | 6.649″ | Model Number | A880-D1375LX38-04 |
| Overall Length (OAL) | 9.428″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
3.00000
Package Width
3.00000
Package Height
3.00000
Package Weight
3.214
