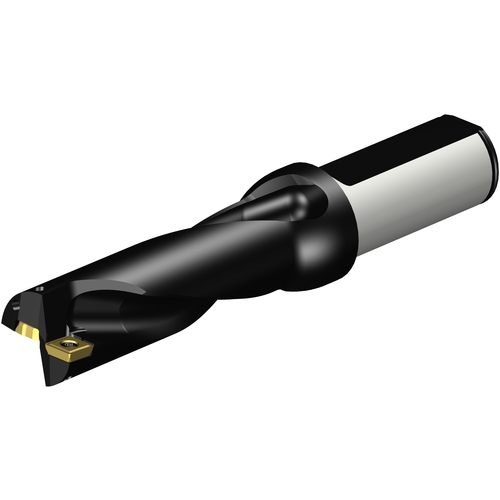

880-D2550L25-03 CORODRILL 880 U-DRILL
Indexable Insert Drill; 25.5 mm Dia. × 77 mm LU × 25 mm Shank Dia. × 156 mm OAL ; Steel
| Cutting Diameter (DC) | 25.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 77 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Functional Length (LF) | 99.48 mm | Decimal Equivalent | 1.0039″ |
| Overall Length (OAL) | 156 mm | Model Number | 880-D2550L25-03 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.105
