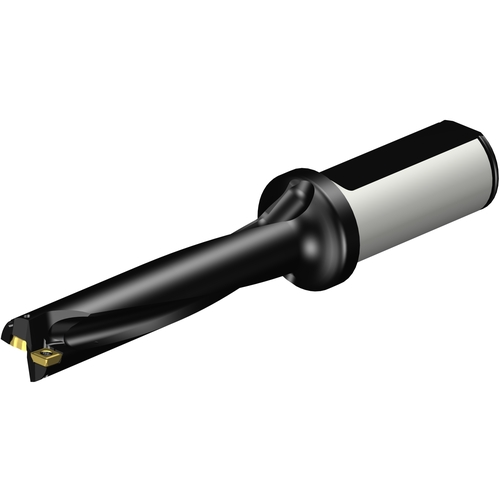

A880-D0687LX25-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 0.687″ Dia. × 3.44″ LU × 1″ Shank Dia. × 6.371″ OAL ; Steel
| Cutting Diameter (DC) | 0.687″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.44″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 3.57″ | Body Material | Steel |
| Functional Length (LF) | 4.154″ | Decimal Equivalent | 0.687″ |
| Overall Length (OAL) | 6.371″ | Model Number | A880-D0687LX25-05 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.892
